Figure 1-795 Turn the power o (DU)
1
Office
jet En
terp
ri
se
C
o
lo
r
X
55
6
2
Step 6: Remove the formatter cover (DU)
▲

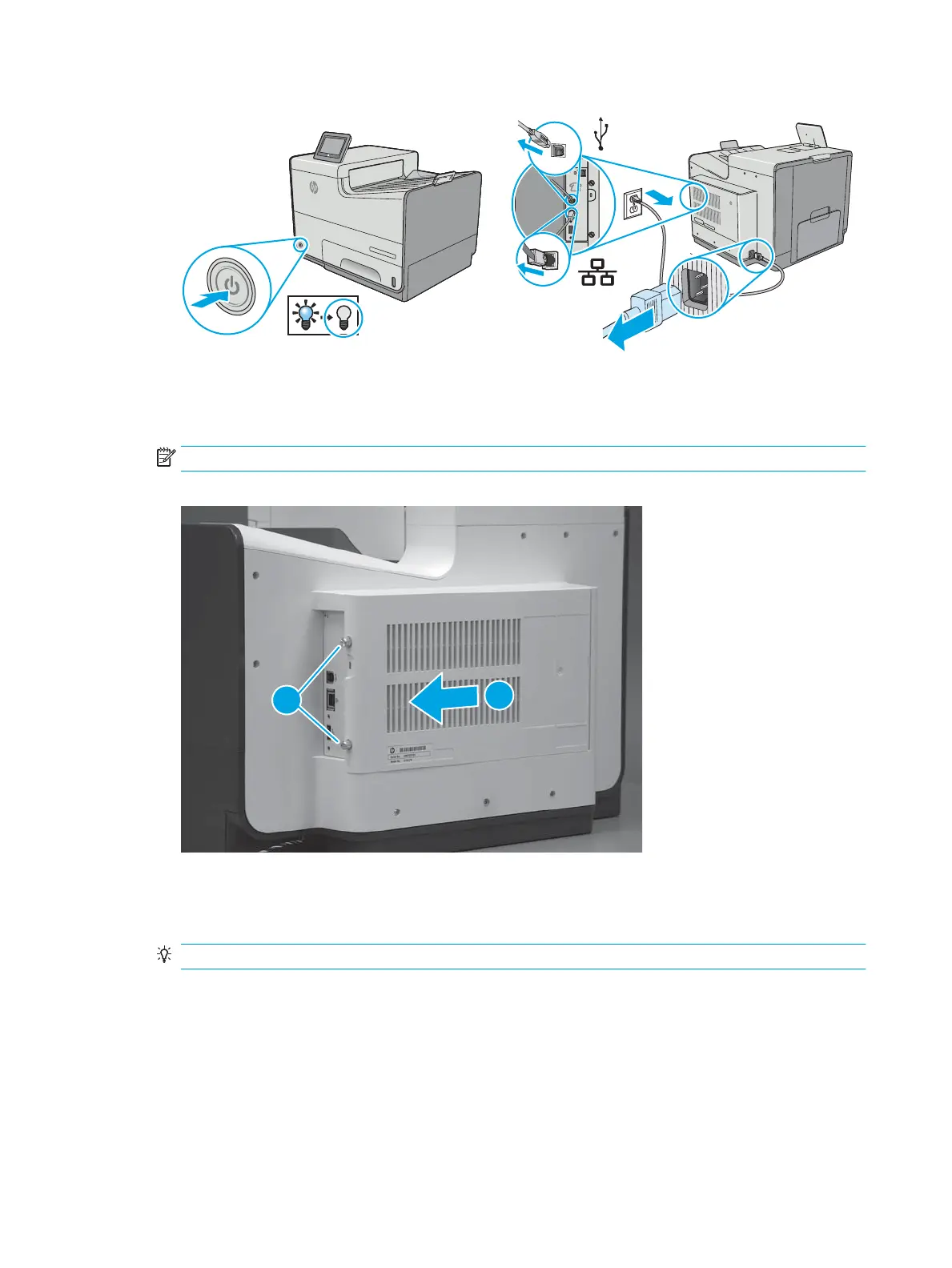

Remove two thumb screws (callout 1), and then slide the cover o of the printer to remove it (callout 2).
NOTE: The thumb screws are not captive and are easily lost.
Figure 1-796 Remove the formatter cover
2
1
Step 7: Remove the right cover (outer) (DU)
1. Pull out on the top corners of the right cover to release the top edge of the cover.
TIP: Open the cartridge door to make removing the cover easier.
