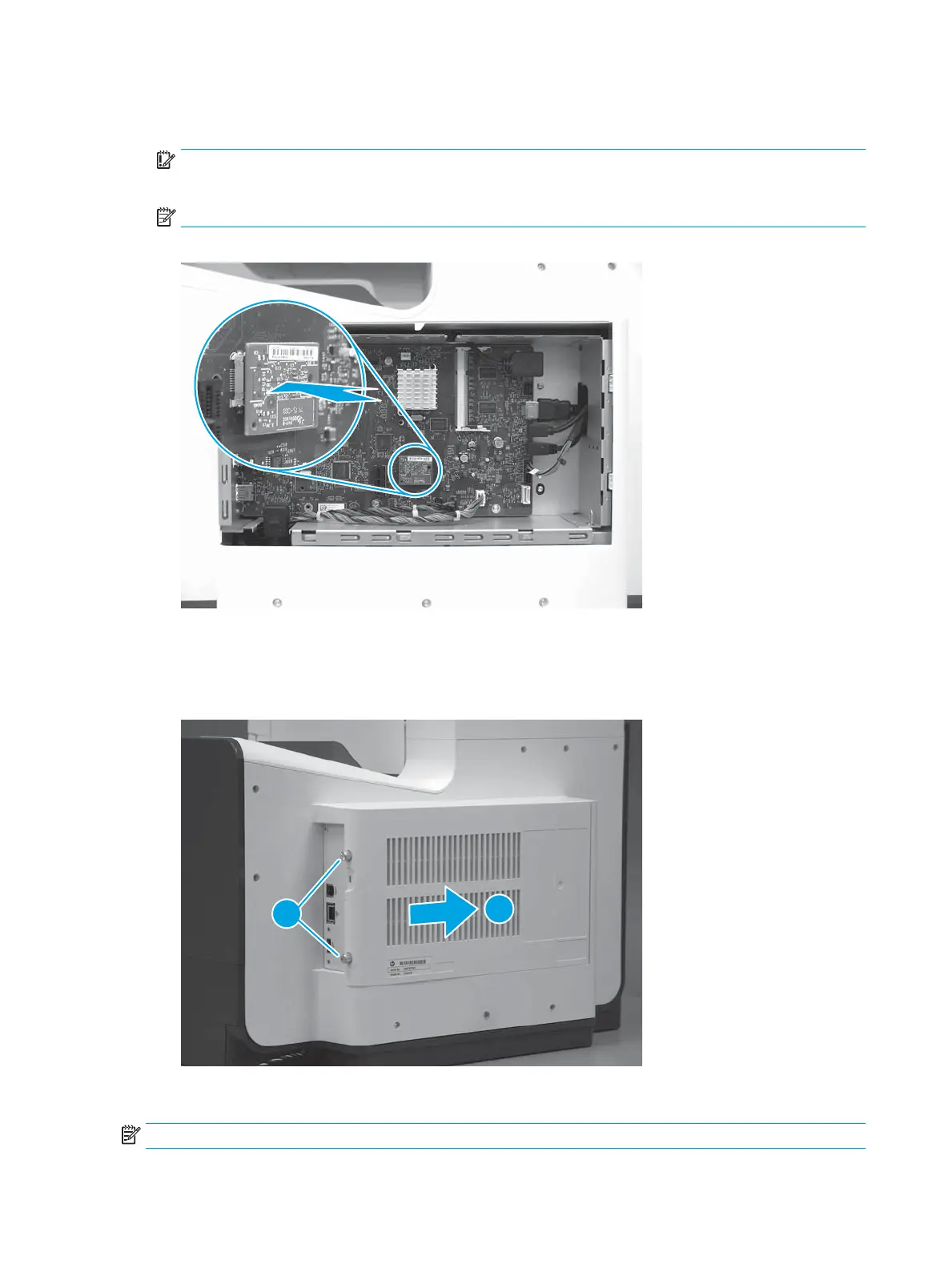

2. Align the connector on the replacement eMMC (callout 1) with the connector on the formatter, and then
push the eMMC onto the formatter to install it.
IMPORTANT: Push on the eMMC at the location shown by the arrow. Ignore any “Push here” label on
the eMMC itself. Make sure that the eMMC is fully seated in the connector .
NOTE: The eMMC can only be installed in one direction on the formatter.
Figure 1-65 Install the eMMC
Step 5: Install the formatter cover
▲
Slide the cover onto the printer (callout 1) to install it, and then install two thumb screws (callout 2).
Figure 1-66 Install the formatter cover
Step 6: Reinstall the product rmware
NOTE: If this installation is a replacement eMMC, use the following steps to reinstall the rmware.
58 Chapter 1 Removal and replacement ENWW
