6. Rotate the top of the assembly out and away from the printer, and then remove the assembly.

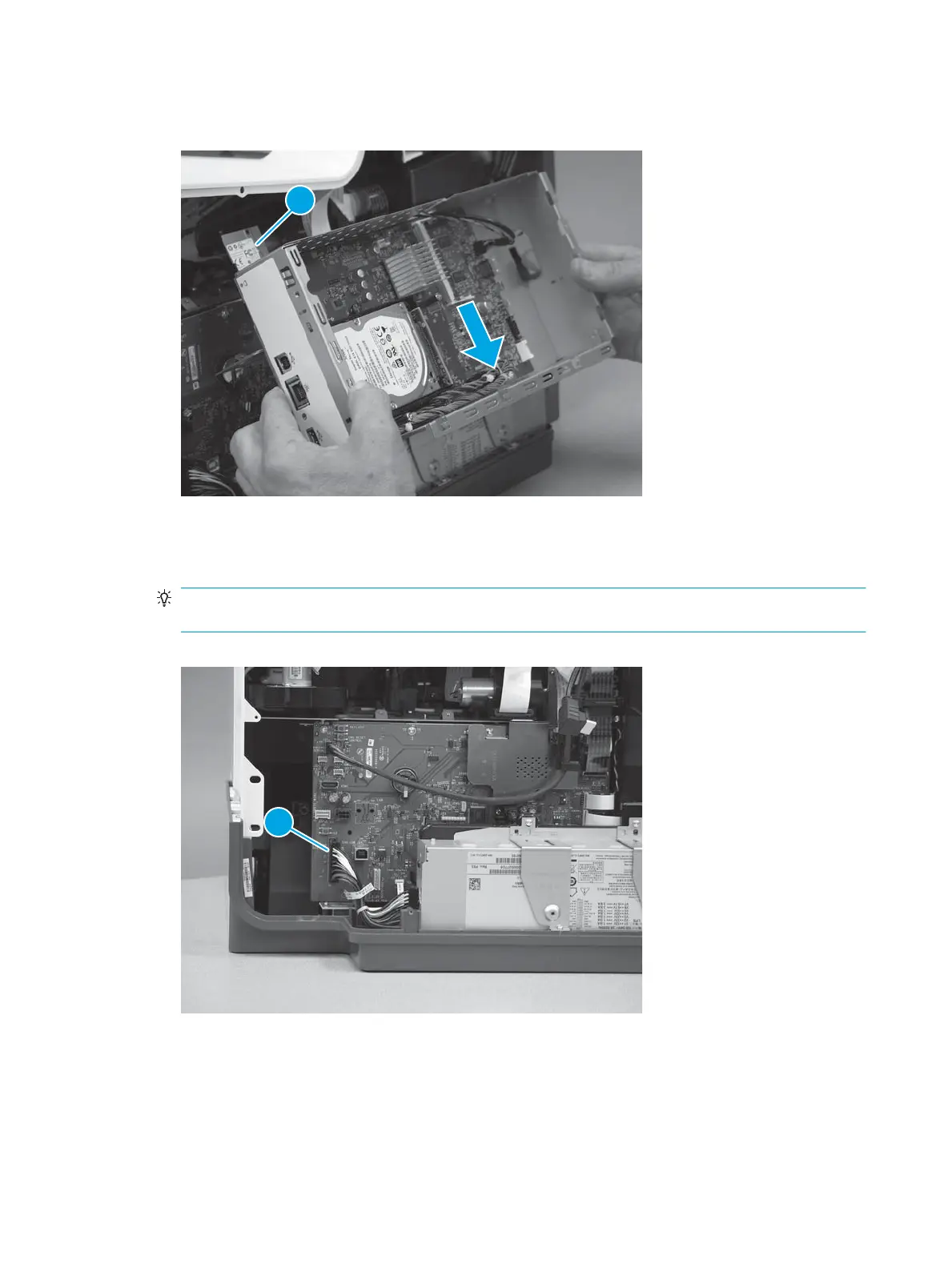

Figure 1-757 Remove the formatter and cage
Step 6: Remove the power supply
1. Disconnect one connector (callout 1)
TIP: This connector might take more than normal force to disconnect connect. Release a small locking
tab while pulling the connector straight out to remove it.
Figure 1-758 Disconnect one connector
458 Chapter 1 Removal and replacement ENWW
