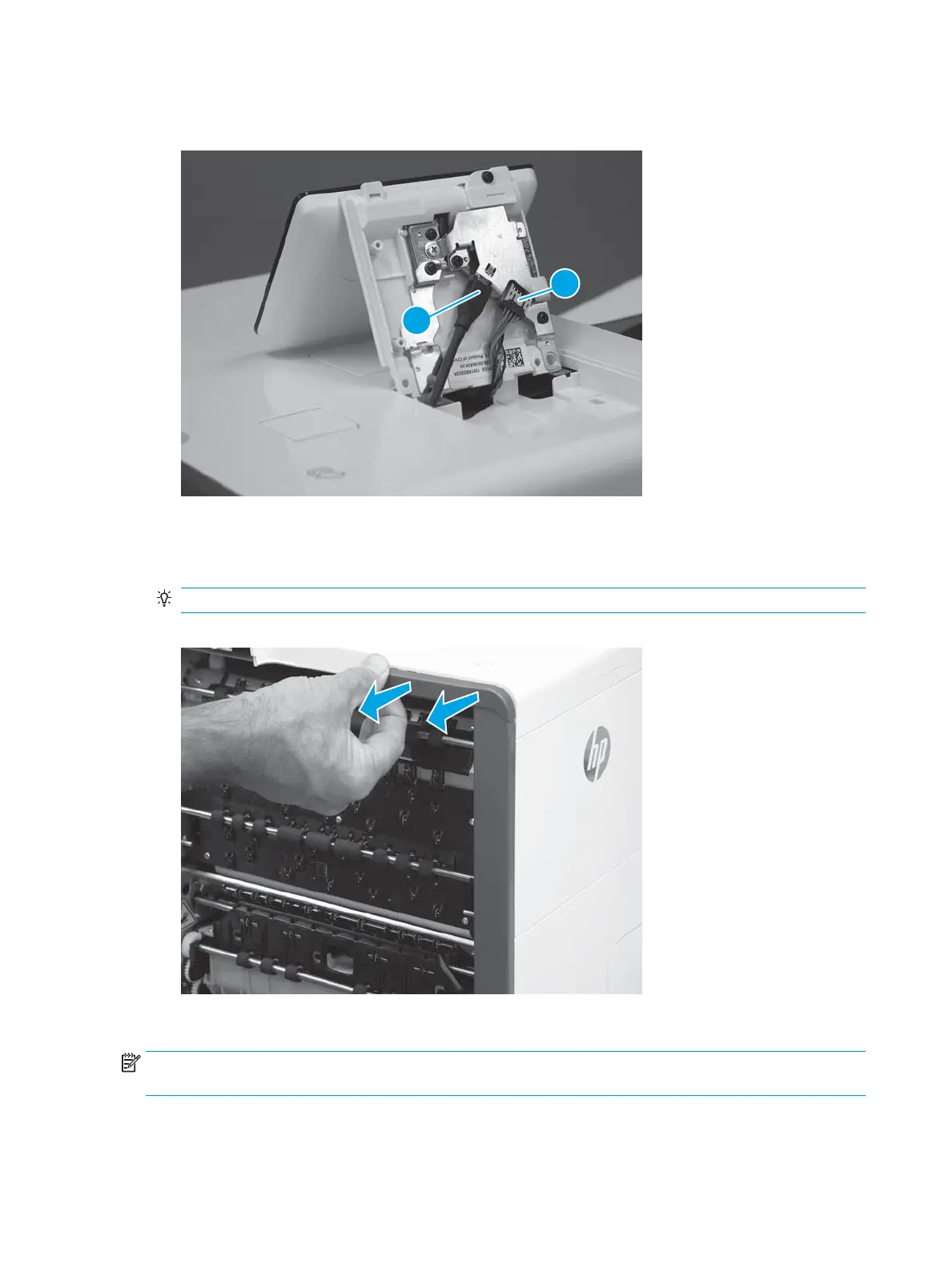

6. Disconnect one HDMI cable (callout 1) and one connector (callout 2), and then remove the control panel.
Figure 1-146 Disconnect connectors and remove the control panel
Step 2: Remove the left-rear top cover cap (556)
▲
Open the left door, and then carefully pull the cover o of the printer.
TIP: It might be easier remove the cover o by using a small at-blade screwdriver.
Figure 1-147 Remove left-front top cover cap (556)
Step 3: Remove the left rear cover
NOTE: The gures in this section show the 586 printer. However, the instructions for removing the cover are
valid for 556 printers.
1. Remove two screws (callout 1).
128 Chapter 1 Removal and replacement ENWW
