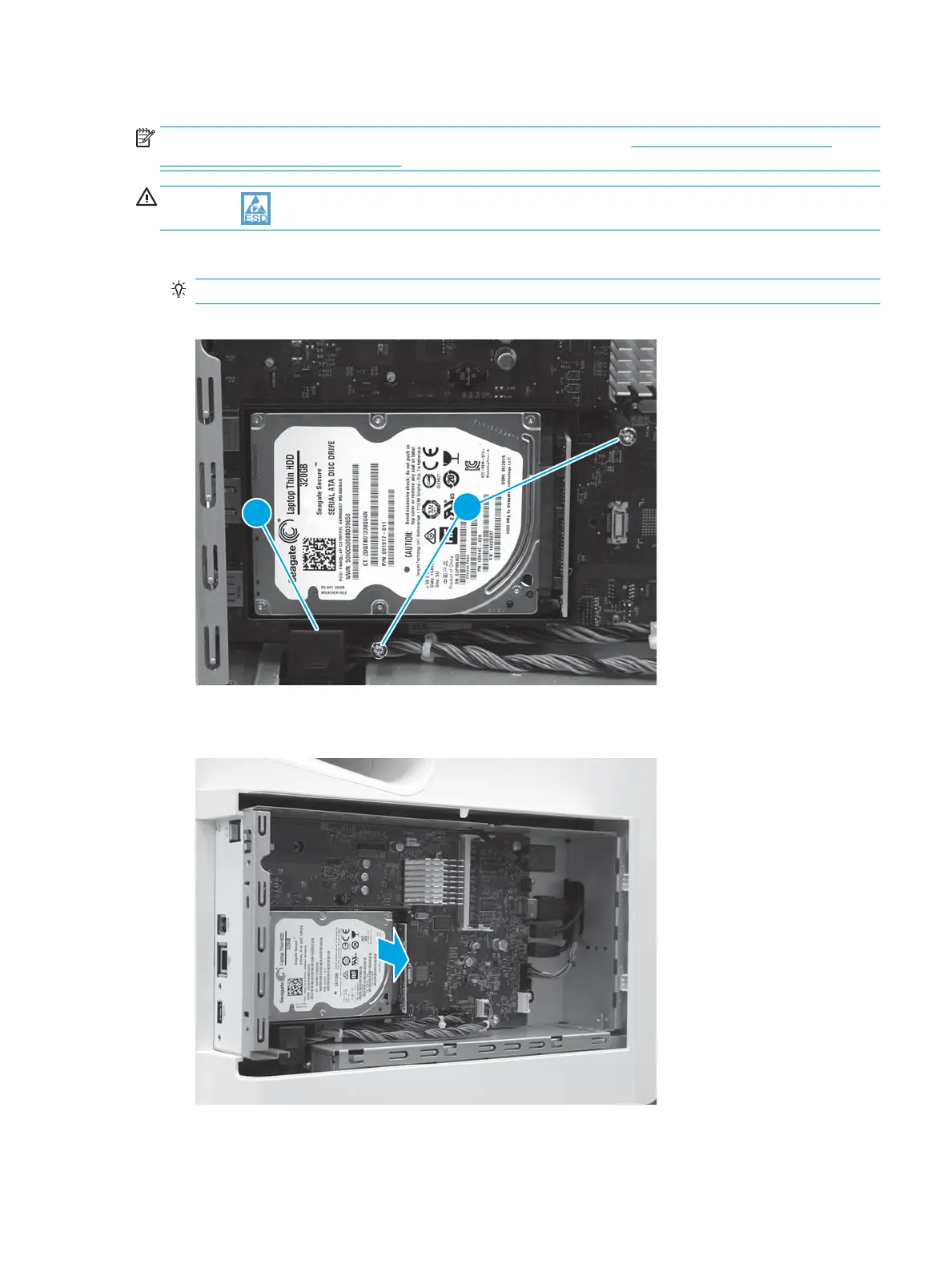

Step 3: Remove the hard-disk drive (HDD)
NOTE: HDD models only. For all other models, skip this step and go to Step 4: Remove the embedded
MultiMedia Card (eMMC) on page 358.
CAUTION: ESD-sensitive part.
1. Remove two thumbscrews (callout 1).
TIP: It might be easier to remove the lower thumbscrew if one connector (callout 2) is disconnected.
Figure 1-579 Release the HDD
2. Pull the HDD straight o of the formatter to remove it.
Figure 1-580 Remove the HDD
