HP PageWide Enterprise Color 556

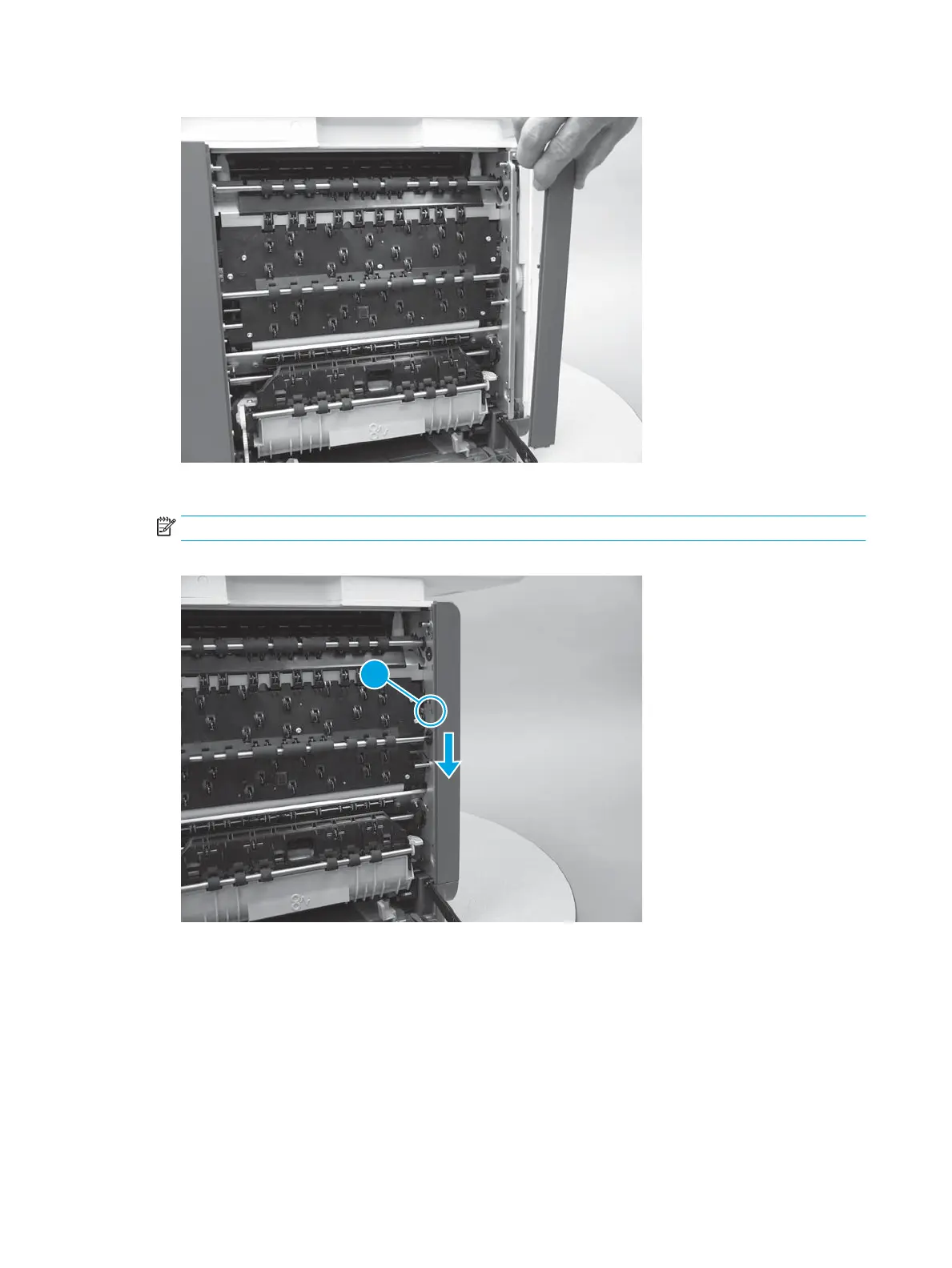

Figure 1-122 Install the left front cover
2. Engage the cover by sliding it down about 10 mm (0.4 in).
NOTE: Make sure that the tab (callout 1) snaps into place.
Figure 1-123 Engage the cover
1
112 Chapter 1 Removal and replacement ENWW
