2. Position the cover on the printer.
NOTE: Pass the cables, wire harnesses, and the guide through the openings in the cover as it is
installed.

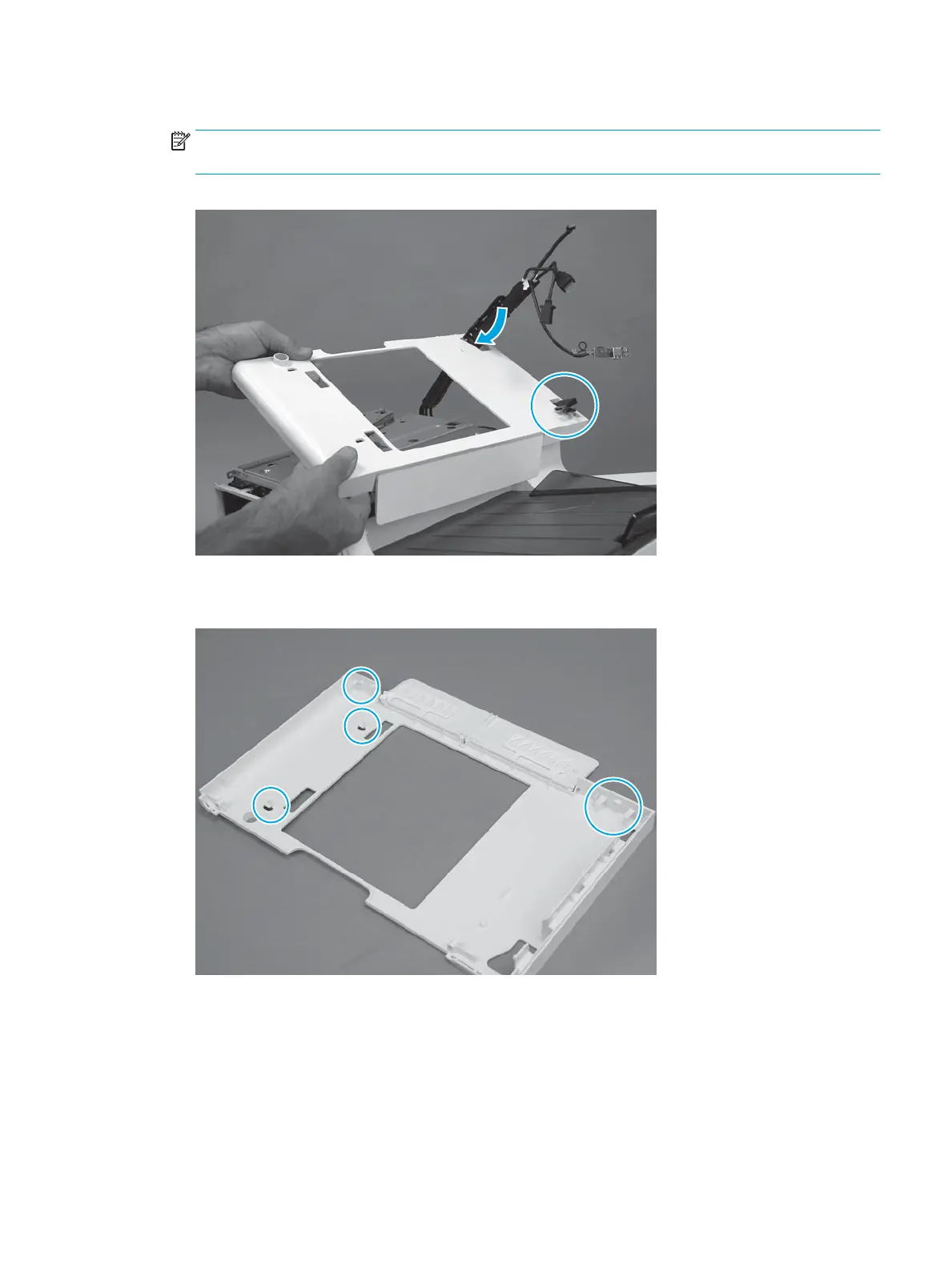

Figure 1-242 Install the top cover (586)
3. Before proceeding, take note of the tabs and hooks on the top cover.
Figure 1-243 Tabs and hooks on the top cover
ENWW Removal and replacement procedures 179
