6.
Install the guide
, and mak
e sure tha
t the two tabs (cal
lout 1) snap int
o place.

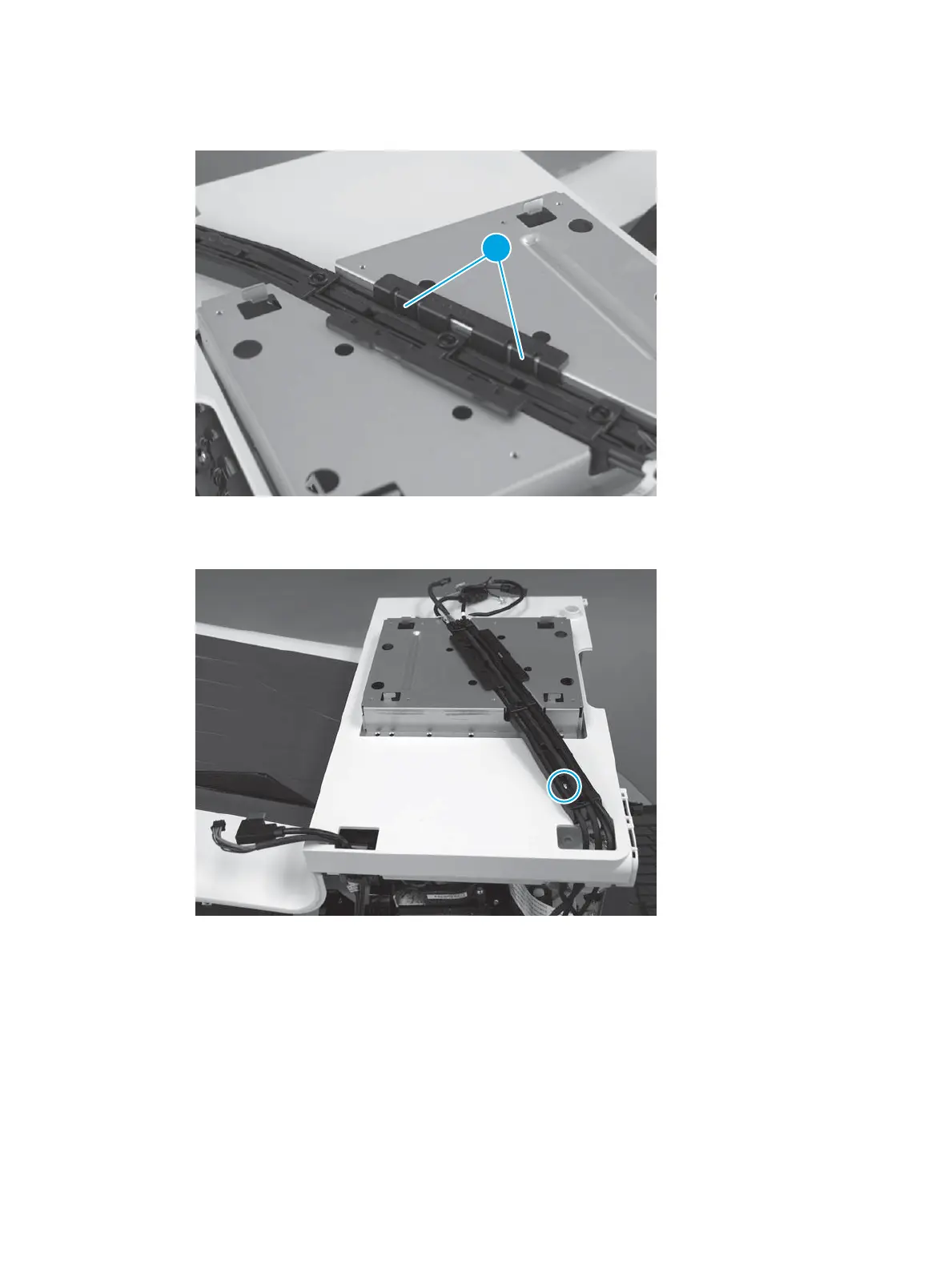

Figure 1-246
Instal
l the guide
1
7.
Install the guide
, and then install one scr
ew.
Figure 1-247
Instal
l one screw
ENWW
Remov
al and replac
ement proc
edures
181
