3. With the front of the ISA tilted up, pass the wire harnesses and cables through the opening in the ISA
chassis.
CAUTION: The ISA is not captive on the printer base. Do not let it fall o of the printer base.

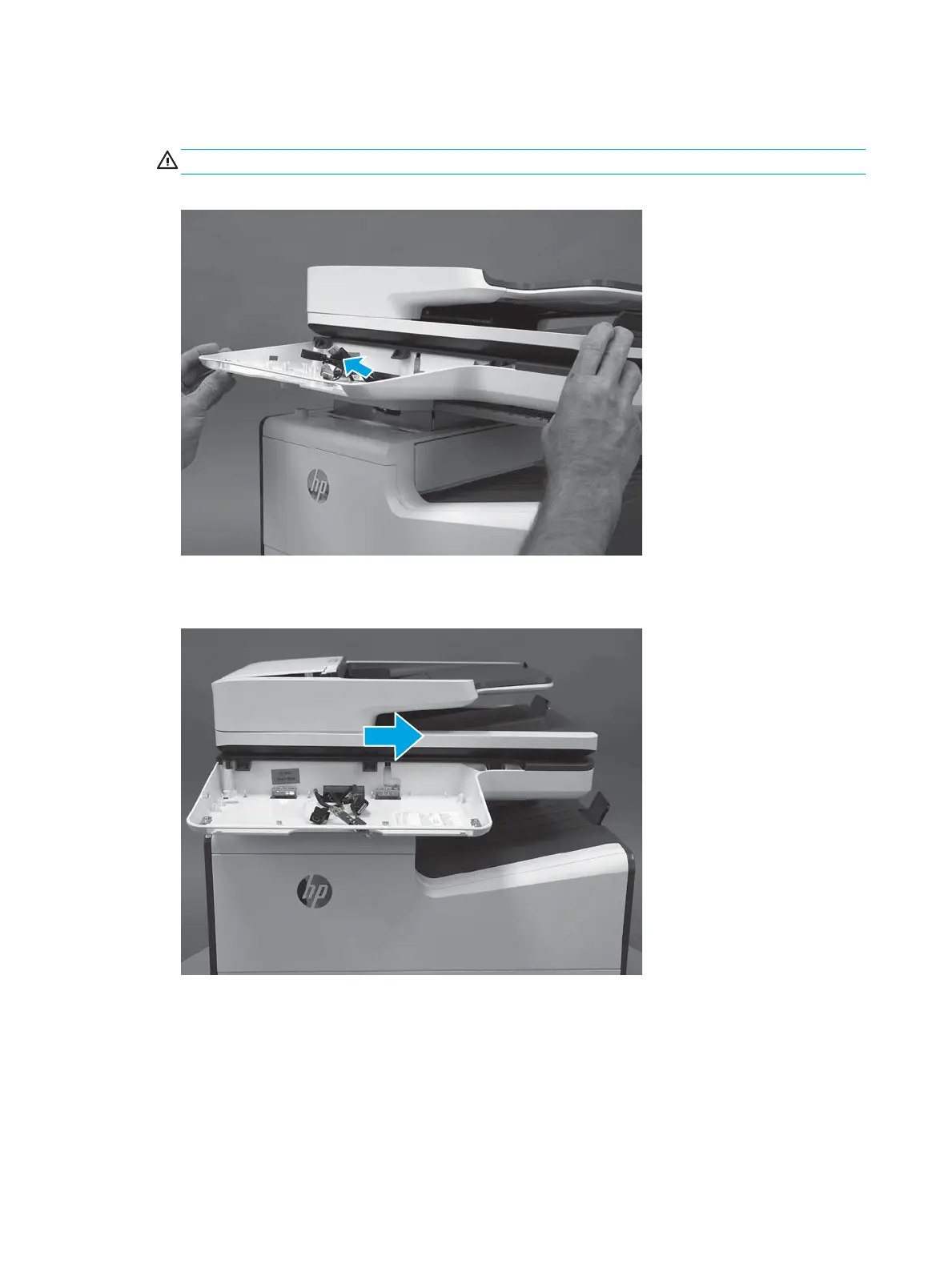

Figure 1-393 Pass the wire harnesses and cables through the opening
4. Lower the front of the ISA, and then slightly slide it toward the right side of the printer to engage it.
Figure 1-394 Slide the ISA right
258 Chapter 1 Removal and replacement ENWW
