NOTE: The ISA includes the document feeder, sub-scanner assembly (SSA), and the scanner control board
(SCB)
586 printers only.
1. If the control panel is in the down position, tilt it up to the fully raised position, and then open the
document feeder.

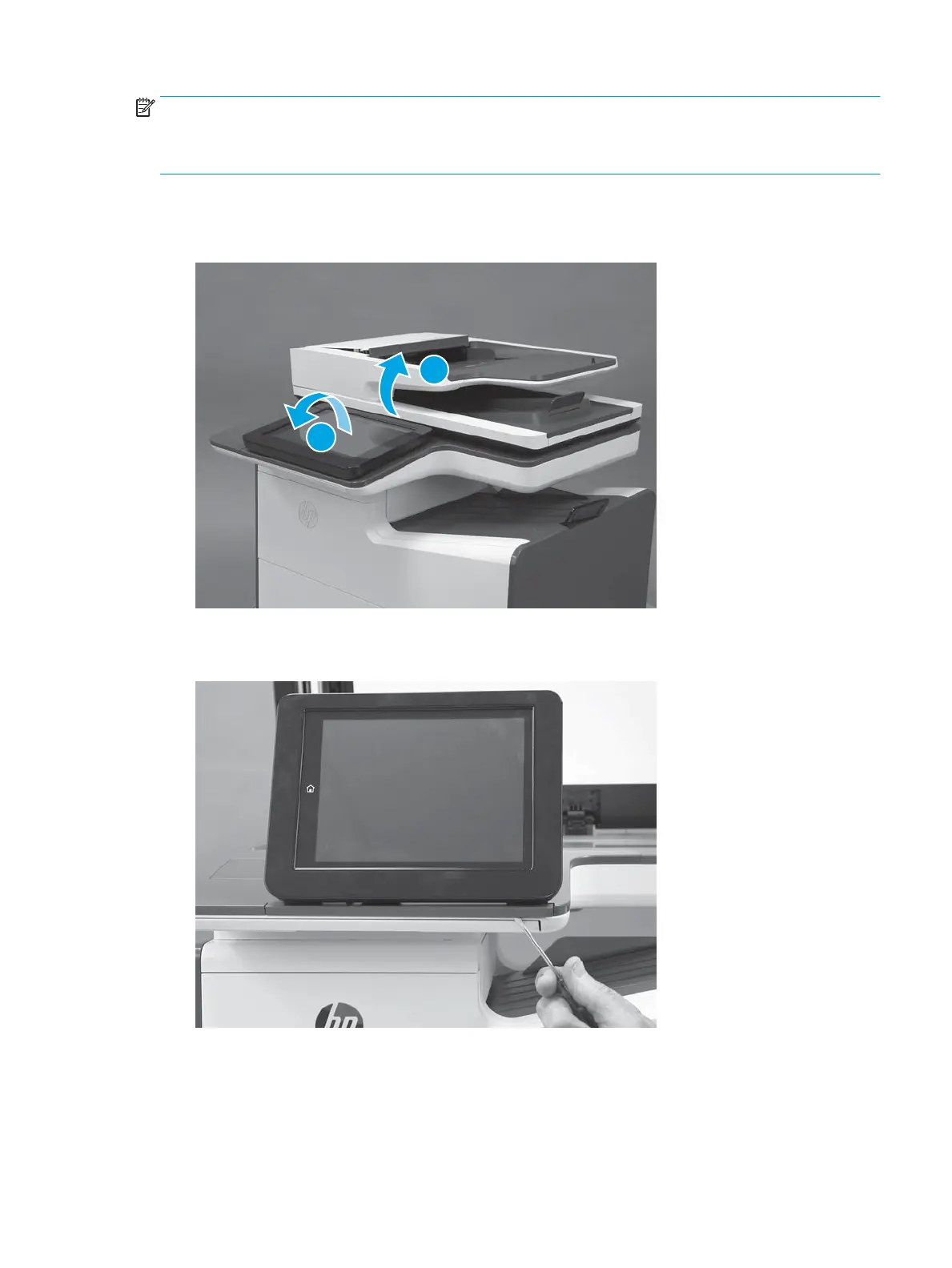

Figure 1-427 Tilt the control panel up
2. Use a small at blade screwdriver to release the small gray plastic cover under the control panel.
Figure 1-428 Release the small gray plastic cover
ENWW Removal and replacement procedures 277
