HP PageWide Enterprise Color 556

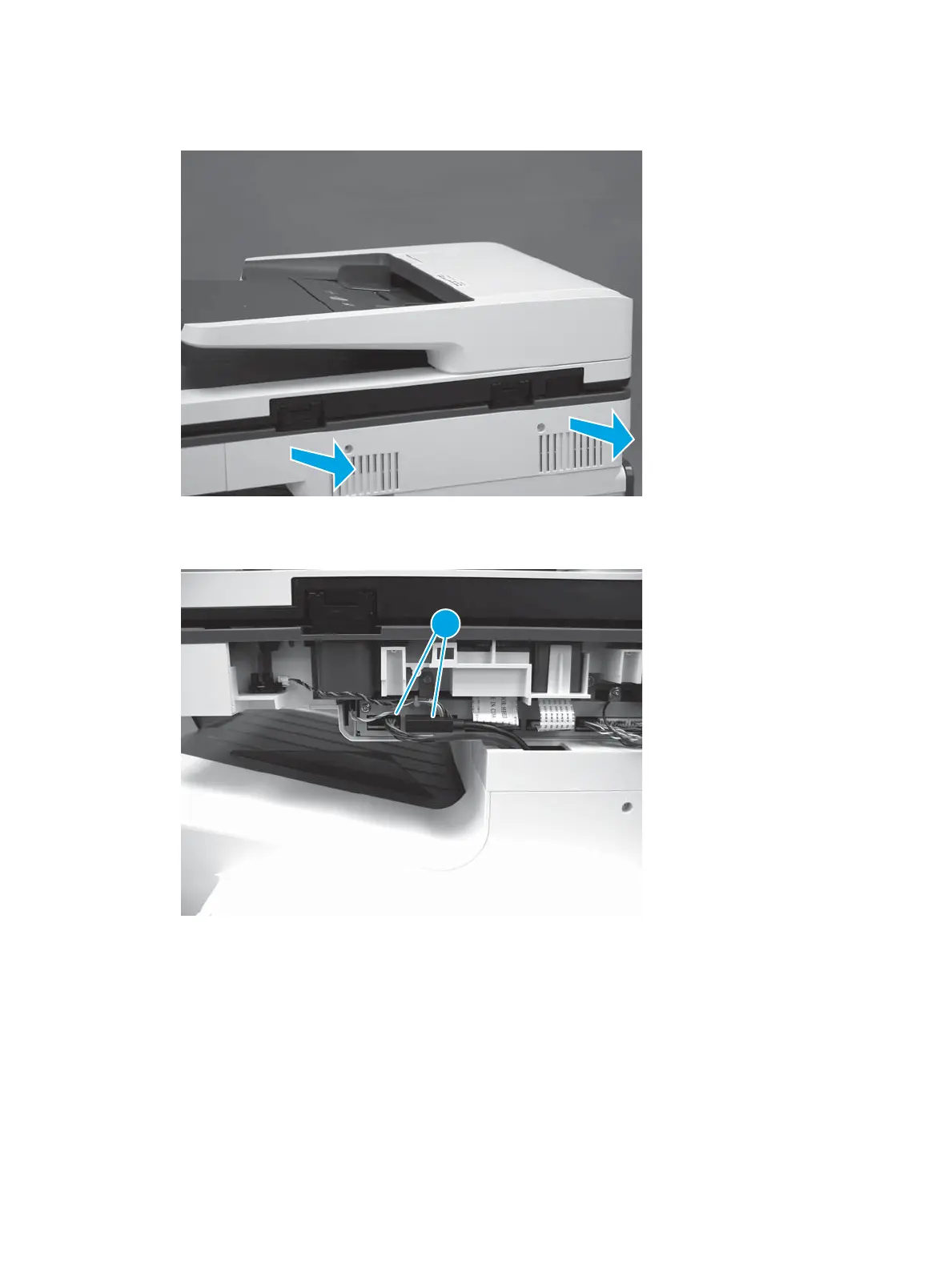

15. Pull the scanner control board (SCB) cover straight o the printer to remove it.
Figure 1-441 Remove the SCB cover
16. At the left end of the SCB, disconnect two connectors (callout 1).
Figure 1-442 Disconnect two connectors
1
284 Chapter 1 Removal and replacement ENWW
