4. Install two cables (callout 1) into the retainer (callout 2).

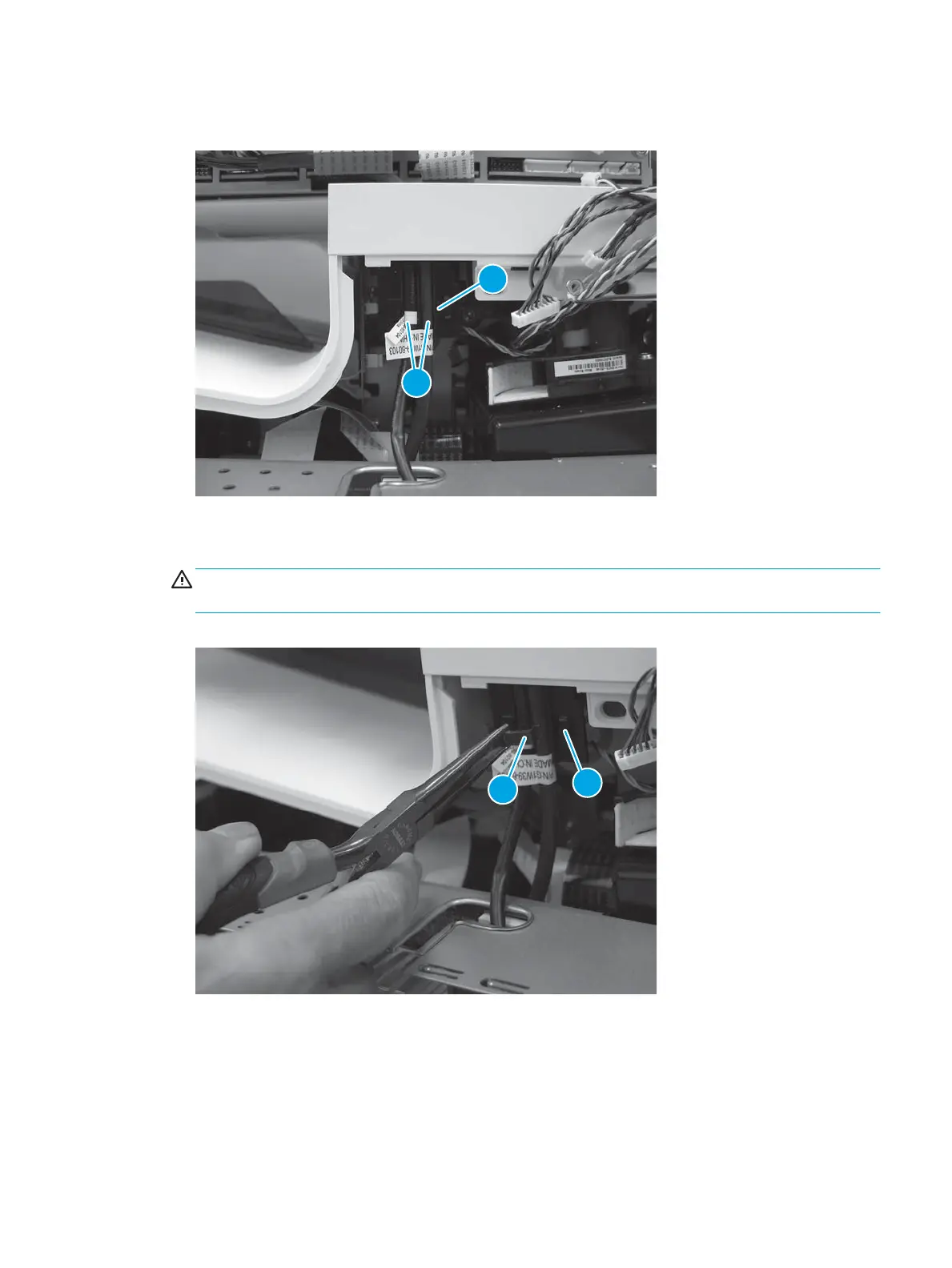

Figure 1-640 Install two cables
5. Securely hold the retainer clip with needle-nose pliers and position the tab (callout 1) in the slot
(callout 2) in the printer.
CAUTION: This clip is not captive and can easily fall inside the printer. Make sure to hold the clip
securely when installing it.
Figure 1-641 Engage the clip
ENWW Removal and replacement procedures 395
