3. Securely hold one end of the retainer clip with needle-nose pliers (callout 1), and then use a small, at-
blade screwdriver (callout 2) to release the other end of the clip.
CAUTION: This clip is not captive and can easily fall inside the printer. Make sure to hold the clip
securely when removing it.

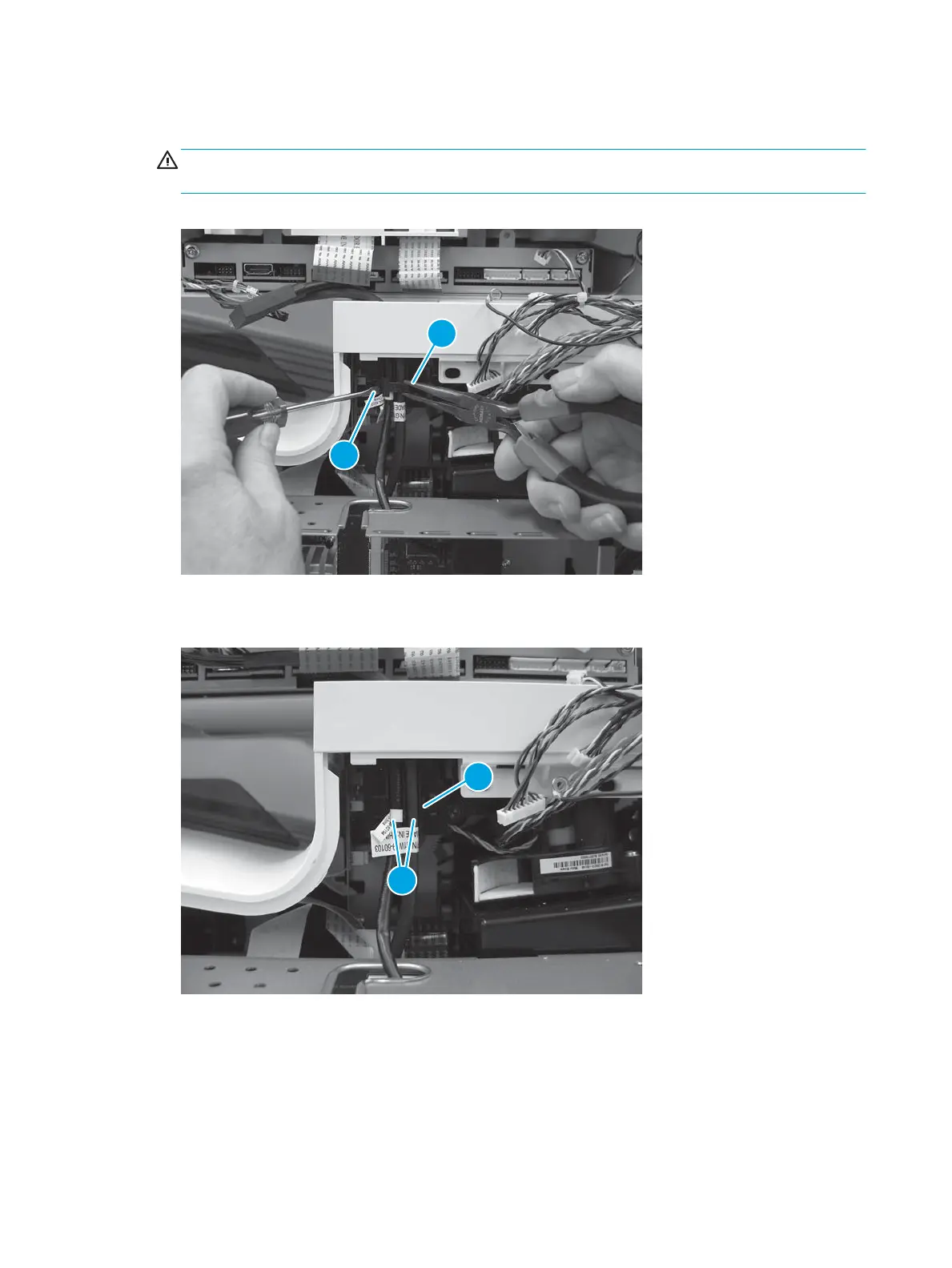

Figure 1-678 Remove the retainer clip
4. Remove two cables (callout 1) from the retainer (callout 2).
Figure 1-679 Remove two cables
416 Chapter 1 Removal and replacement ENWW
