HP PageWide Enterprise Color 556

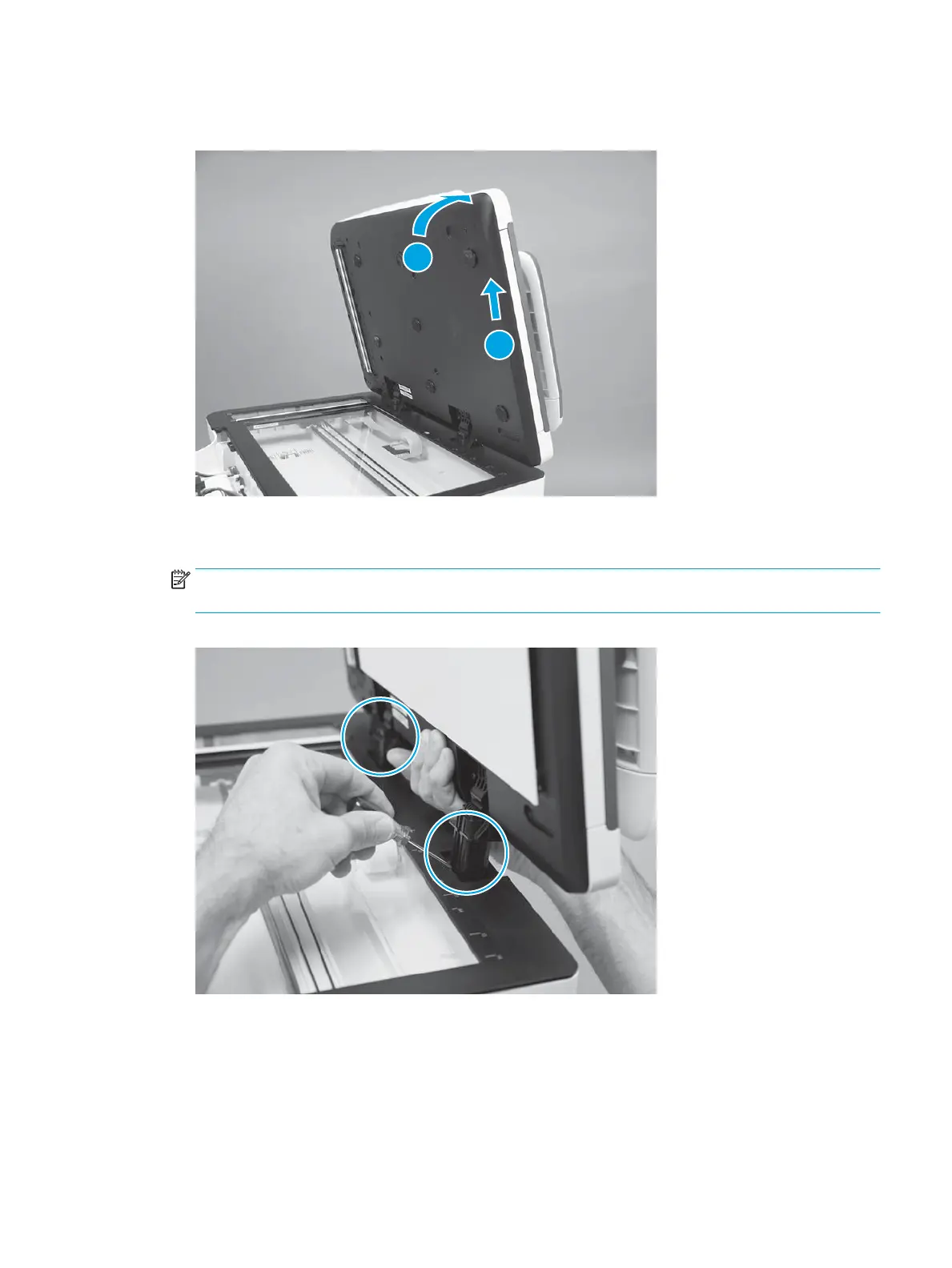

2. Tilt the document feeder back until it stops (callout 1), and then lift it up until it stops (callout 2).
Figure 1-684 Tilt the document feeder back
1
2
3. Support the document feeder, and then use a small, at-blade screwdriver to release two tabs on the
document feeder hinges.
NOTE: The tabs are located on the front side (scanner atbed glass) of the hinges. Use the gure
below to locate the tabs.
Figure 1-685 Release two tabs on the hinges
ENWW Removal and replacement procedures 419
