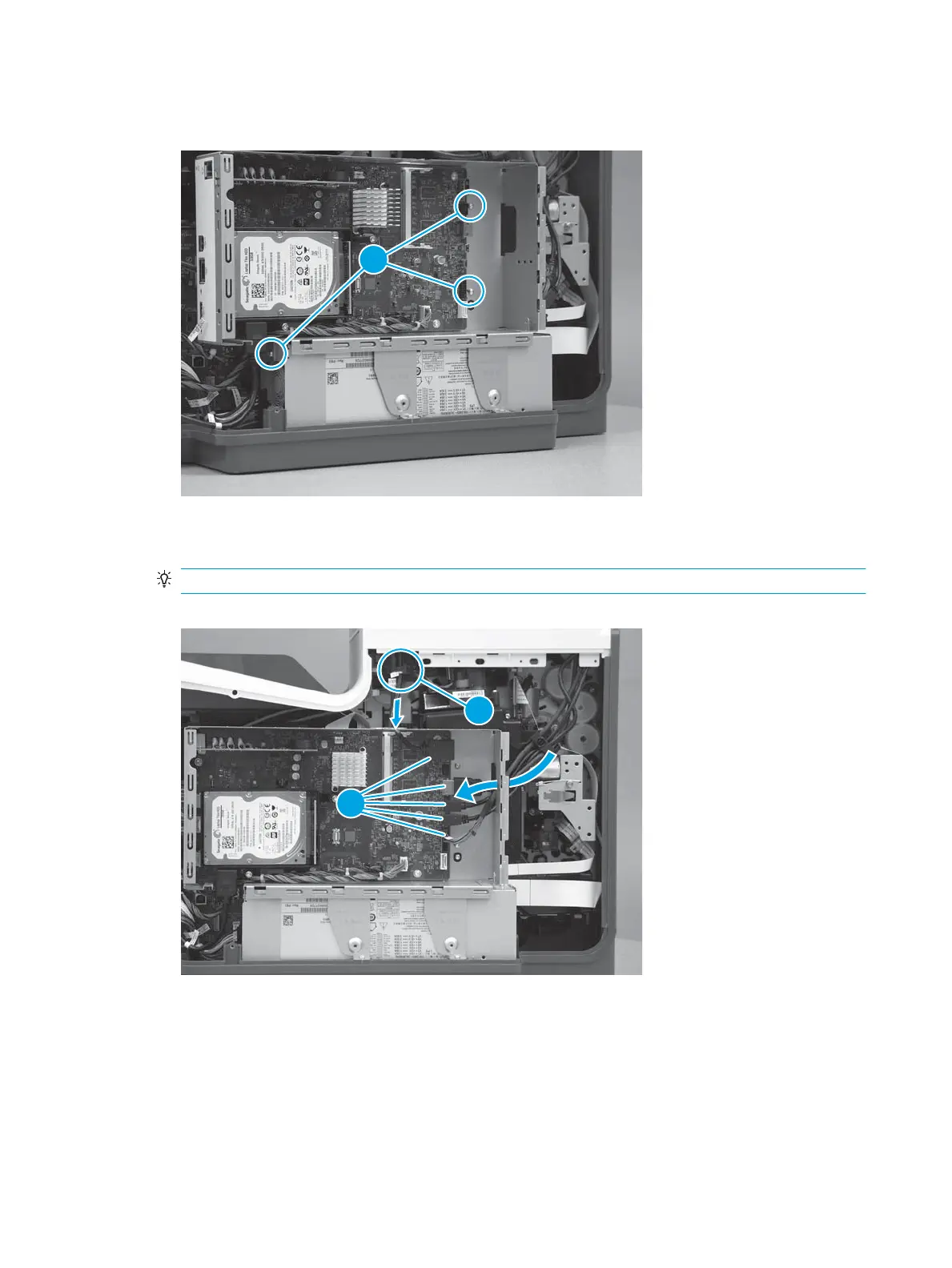

3. Install three screws (callout 1).
Figure 1-771 Install three screws
4. Pass the cables and wire harness through the opening in the formatter cage, and then connect ve
connectors (callout 1).
TIP: The cable retainer (callout 2) is easily dislodged. Do not lose the retainer.
Figure 1-772 Disconnect connectors
466 Chapter 1 Removal and replacement ENWW
