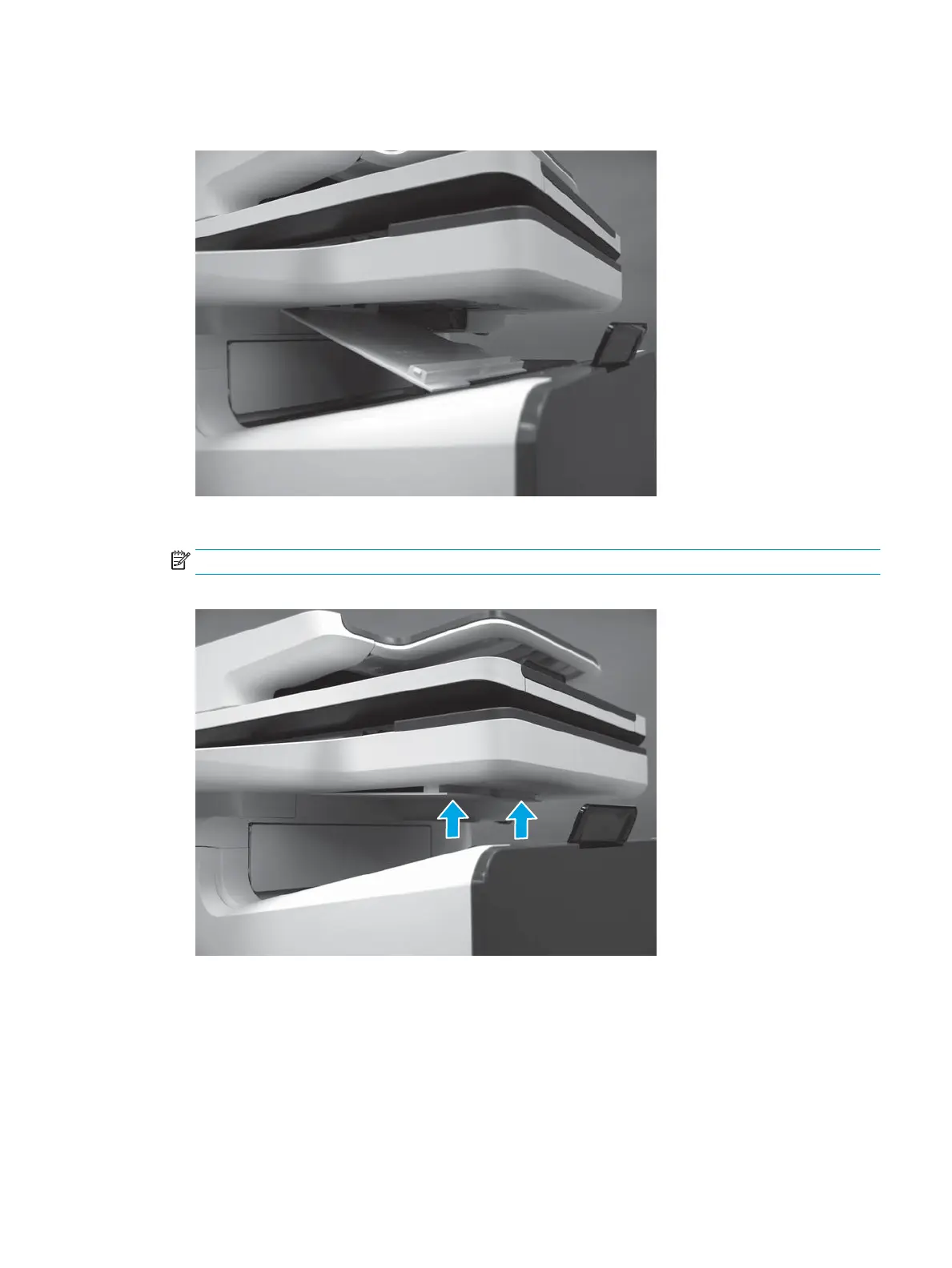

6. Position the scanner base cover on the printer.
Figure 1-917 Install the scanner base cover
7. Push up on the cover to install it.
NOTE: Installing the cover might require considerable force to snap it into place
Figure 1-918 Install the cover
ENWW Removal and replacement procedures 551
