HP PageWide Enterprise Color 556

3. Remove the cover.

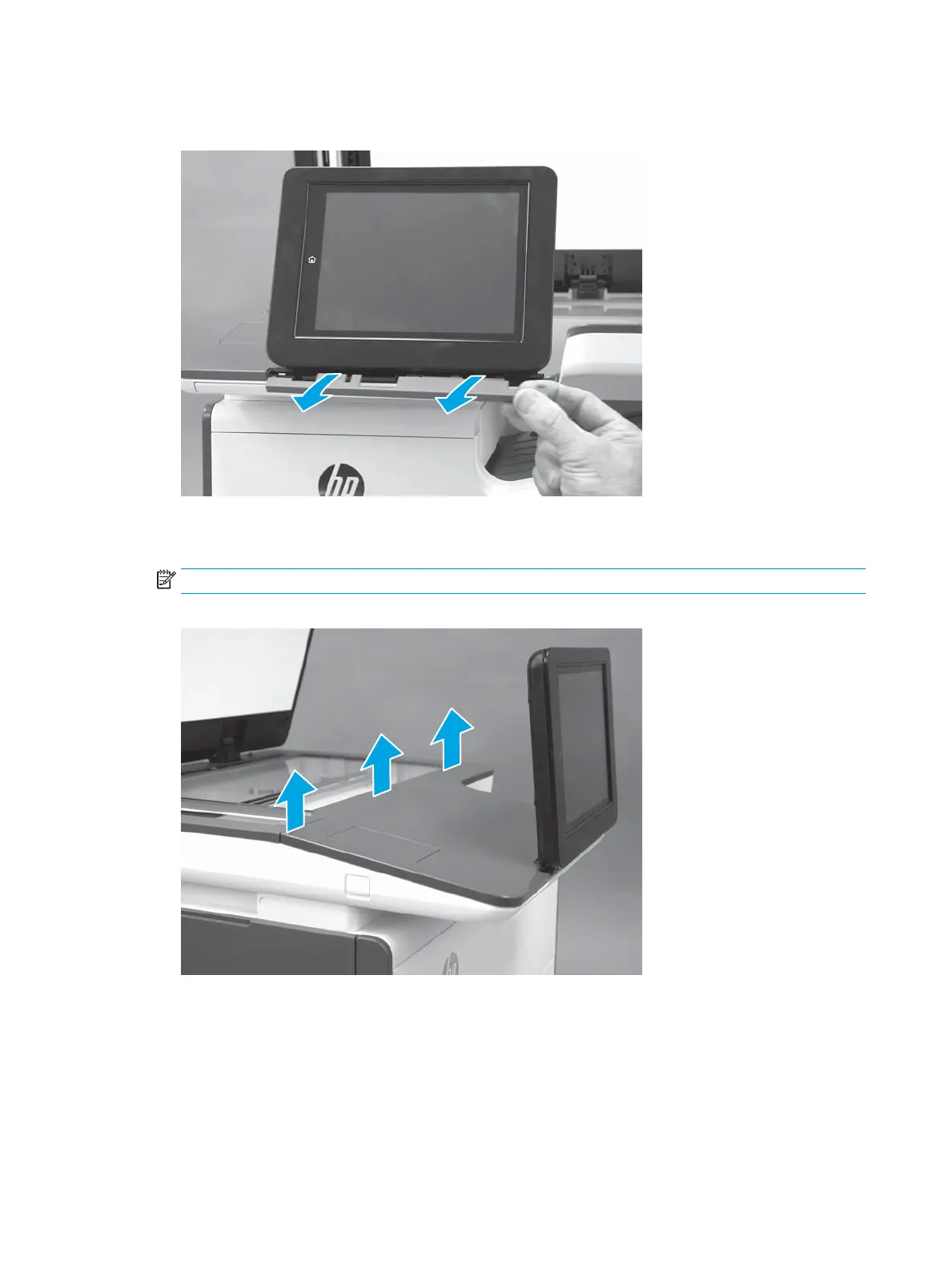

Figure 1-33 Remove the cover
4. Beginning at the left side of the control-panel cover, carefully release three bosses along the top edge of
the cover.
NOTE: The thin, black plastic cover will separate from the white plastic control-panel base.
Figure 1-34 Release three bosses
36 Chapter 1 Removal and replacement ENWW
