HP PageWide Enterprise Color 556

5. Lift up on the cover to release the right- and left-side bosses, and then remove the cover.

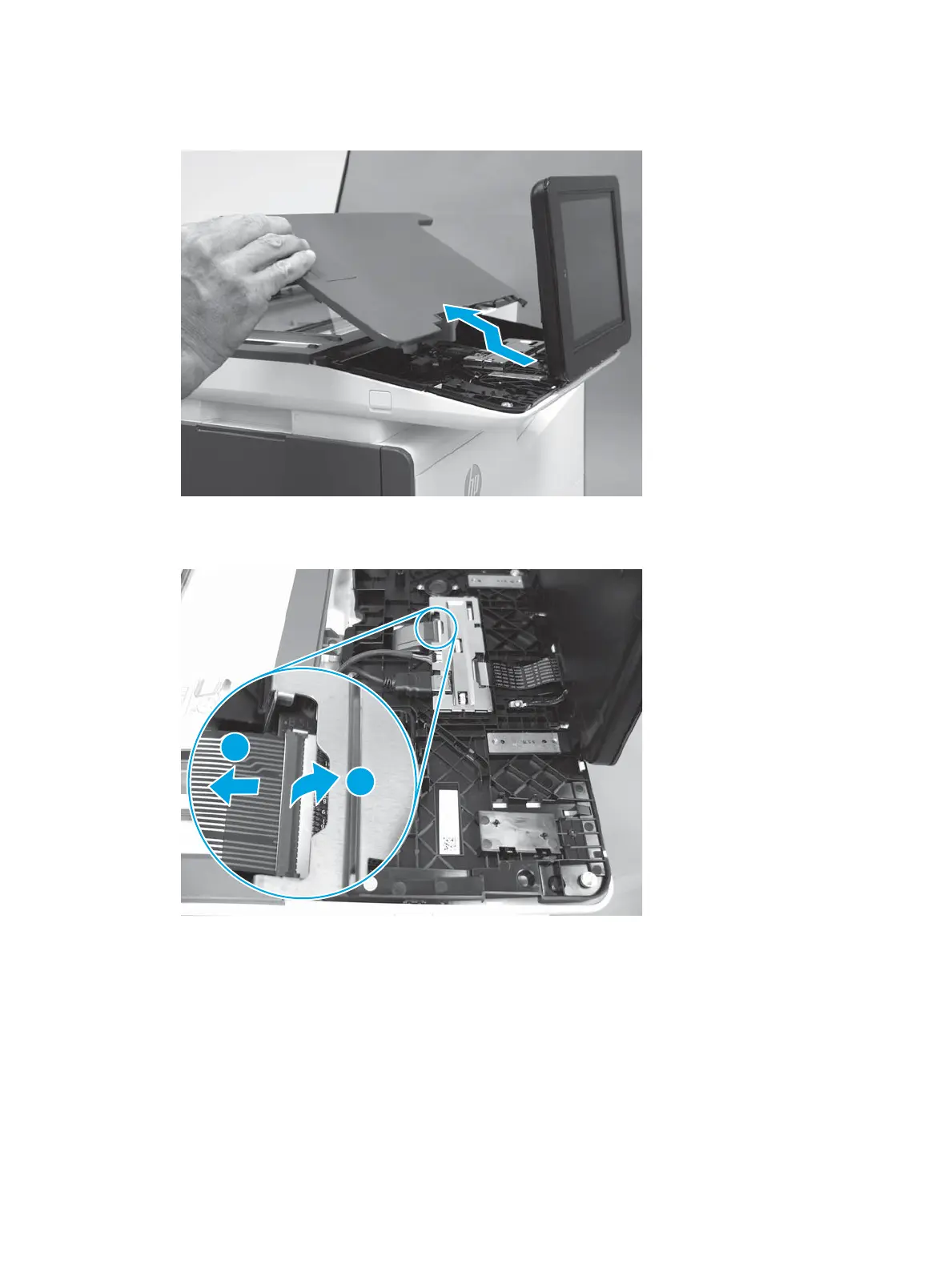

Figure 1-52 Remove the cover
6. Open the connector latch to release the keyboard at cable.
Figure 1-53 Release the keyboard cable
1
2
48 Chapter 1 Removal and replacement ENWW
