3 - 41
IPN 074-397-P1G
HAPSITE Smart Operating Manual
NOTE: Concentrator Cleanout methods require the probe to be attached.
4 Select Run Method from the main menu on the front panel of the HAPSITE.
See Figure 3-54.

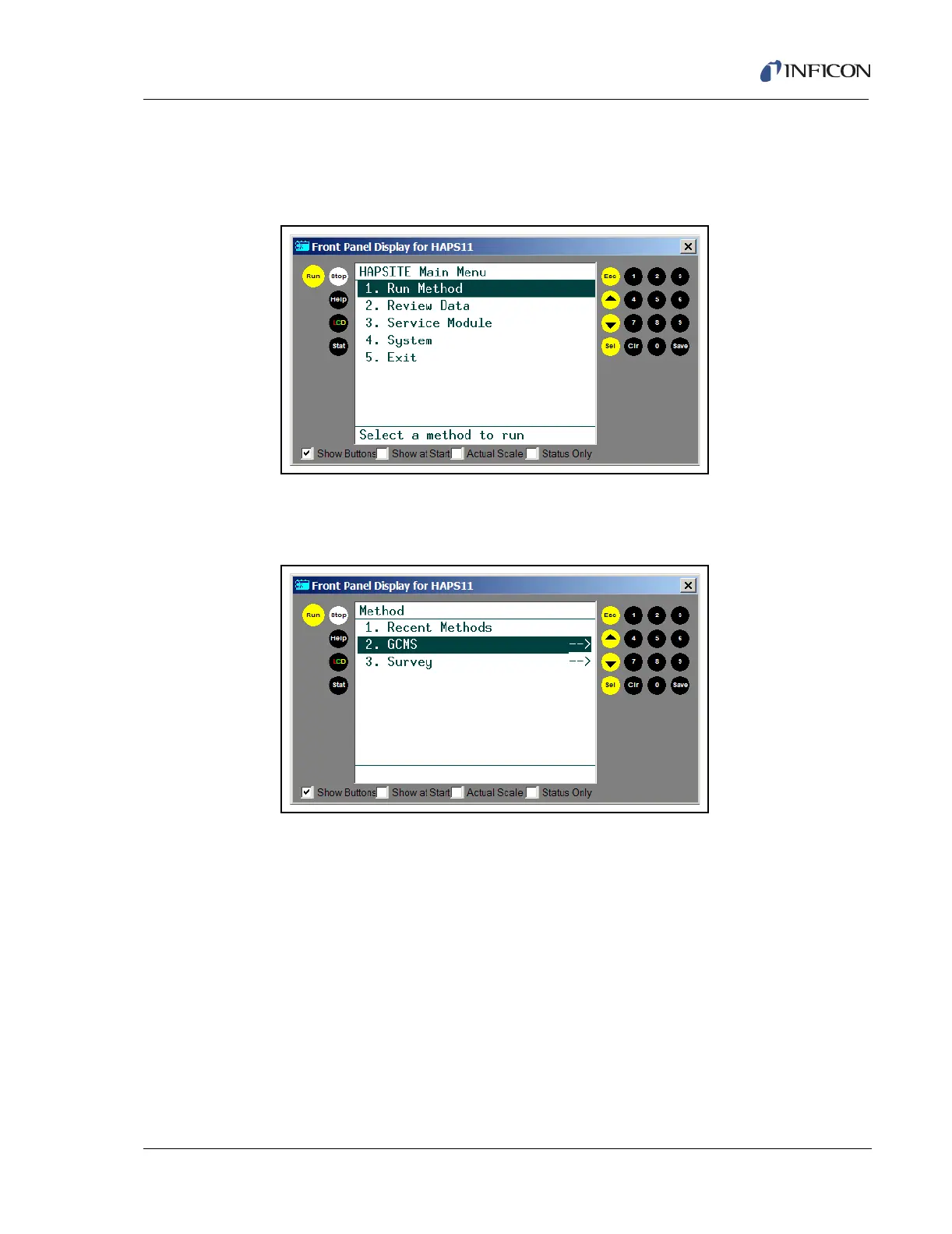

Figure 3-54 Selecting Run Method from the Front Panel
5 Select GCMS from the Method menu on the front panel of the HAPSITE. See
Figure 3-55.
Figure 3-55 Selecting GC/MS from the Method Menu
6 Select the Headspace folder from the GCMS menu. See Figure 3-56.
To Next Page
