3 - 42
IPN 074-397-P1G
HAPSITE Smart Operating Manual

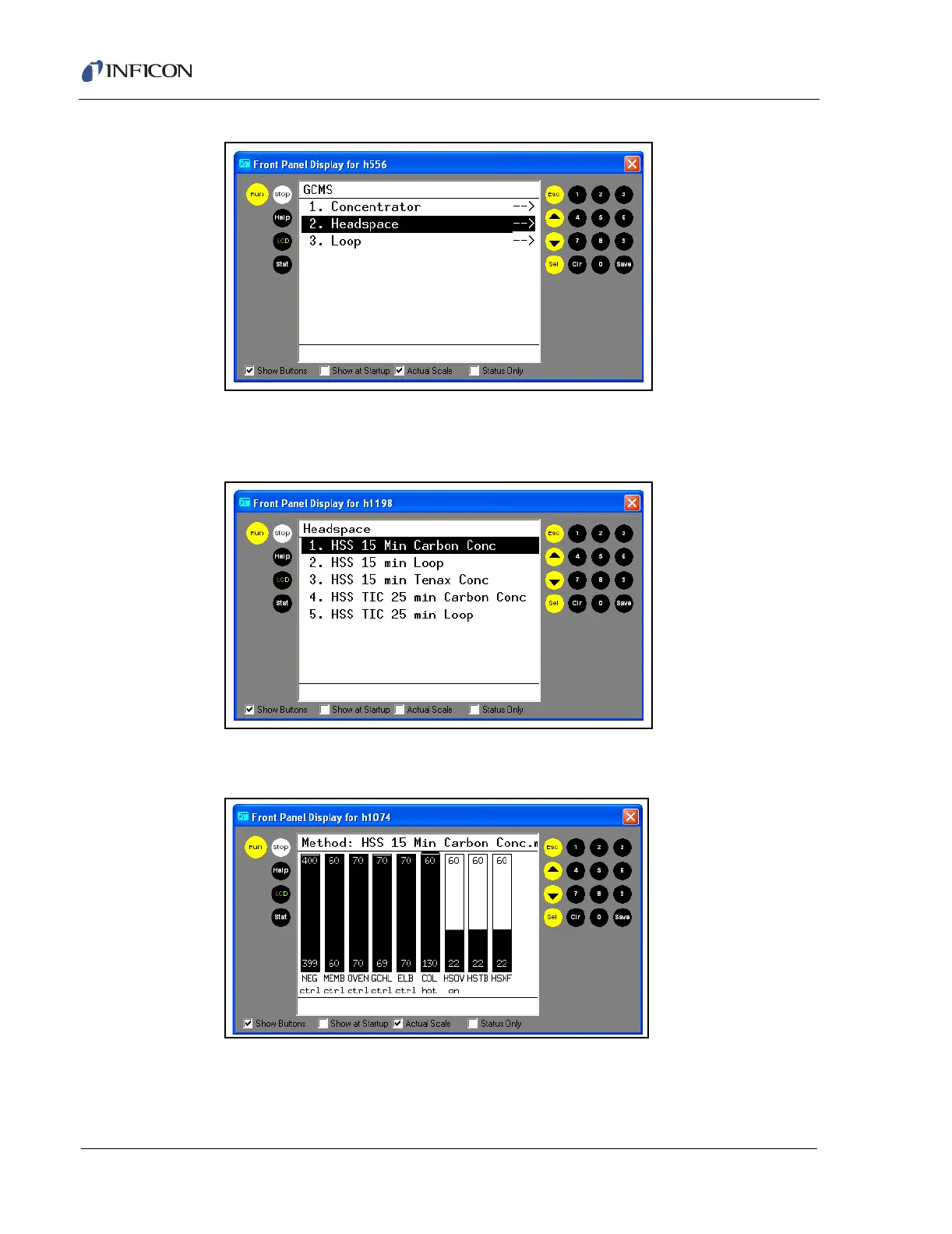

Figure 3-56 Selecting the Headspace Folder
7 Select HSS 15 Min Carbon Conc or HSS 15 min Tenax Conc method,
depending on which concentrator is installed. See Figure 3-57.
Figure 3-57 Selecting the HSS 15 Min Carbon Conc Method
8 Wait for temperatures to stabilize. See Figure 3-58.
Figure 3-58 Front Panel HSS Heater Display
9 Place the headspace needle in the 40 mL vial that contains the sample. Gently
depress into sample vial. See Figure 3-59. See Section 13.2.3, Loading the
Wells, on page 13-10.
