3 - 54

IPN 074-397-P1G

HAPSITE Smart Operating Manual

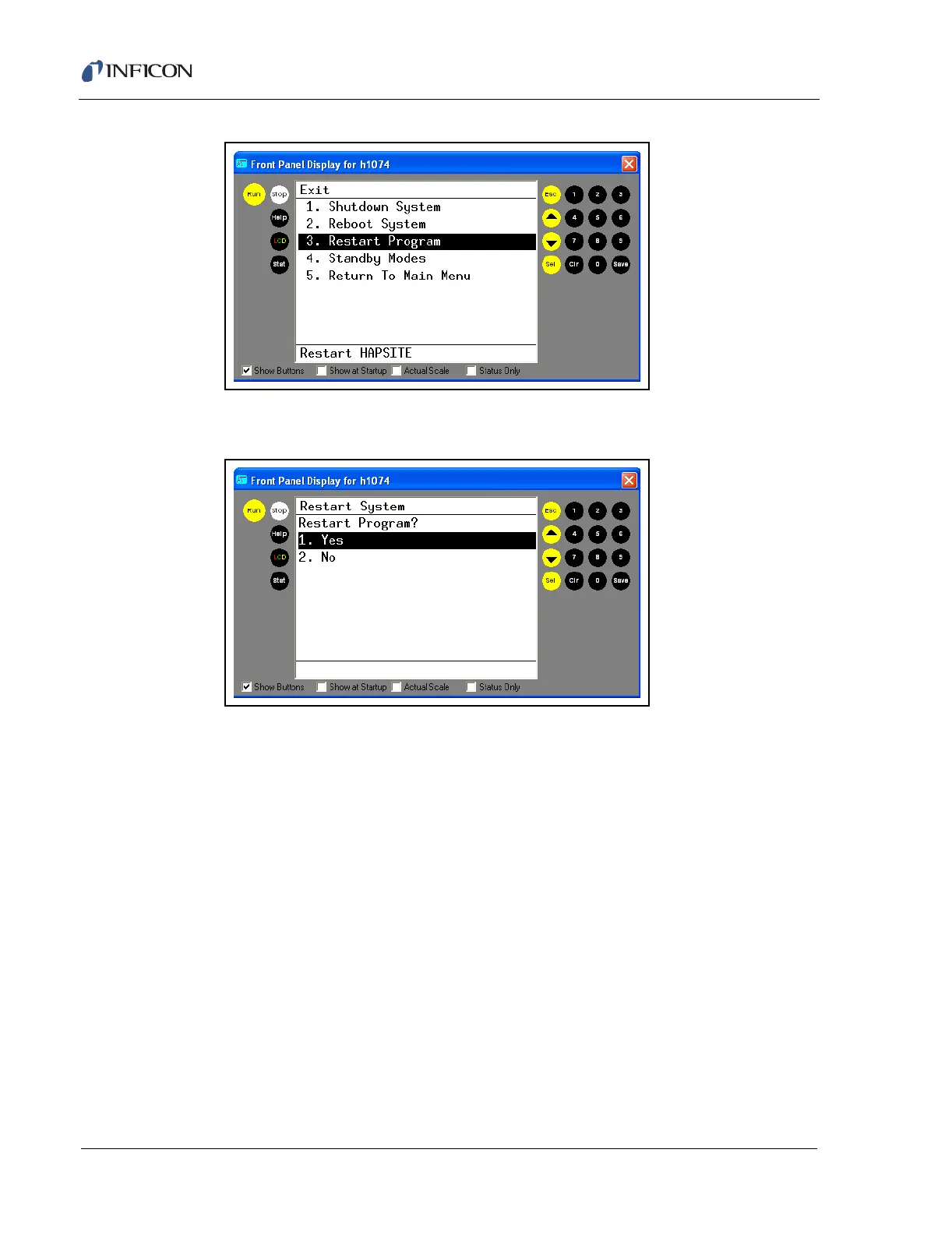

Figure 3-80 Selecting Restart Program Option

4 Arrow down or press 1 and SEL to confirm restart. See Figure 3-81.

Figure 3-81 Confirming Restart Program

5 HAPSITE will shutdown the HAPSITE Smart software, then restart the

HAPSITE Smart software.
