5 - 16
IPN 074-397-P1G
HAPSITE Smart Operating Manual
NOTE: At this point the HAPSITE will check pressures and temperatures. A
prompt will appear when the HAPSITE is ready to run the method.

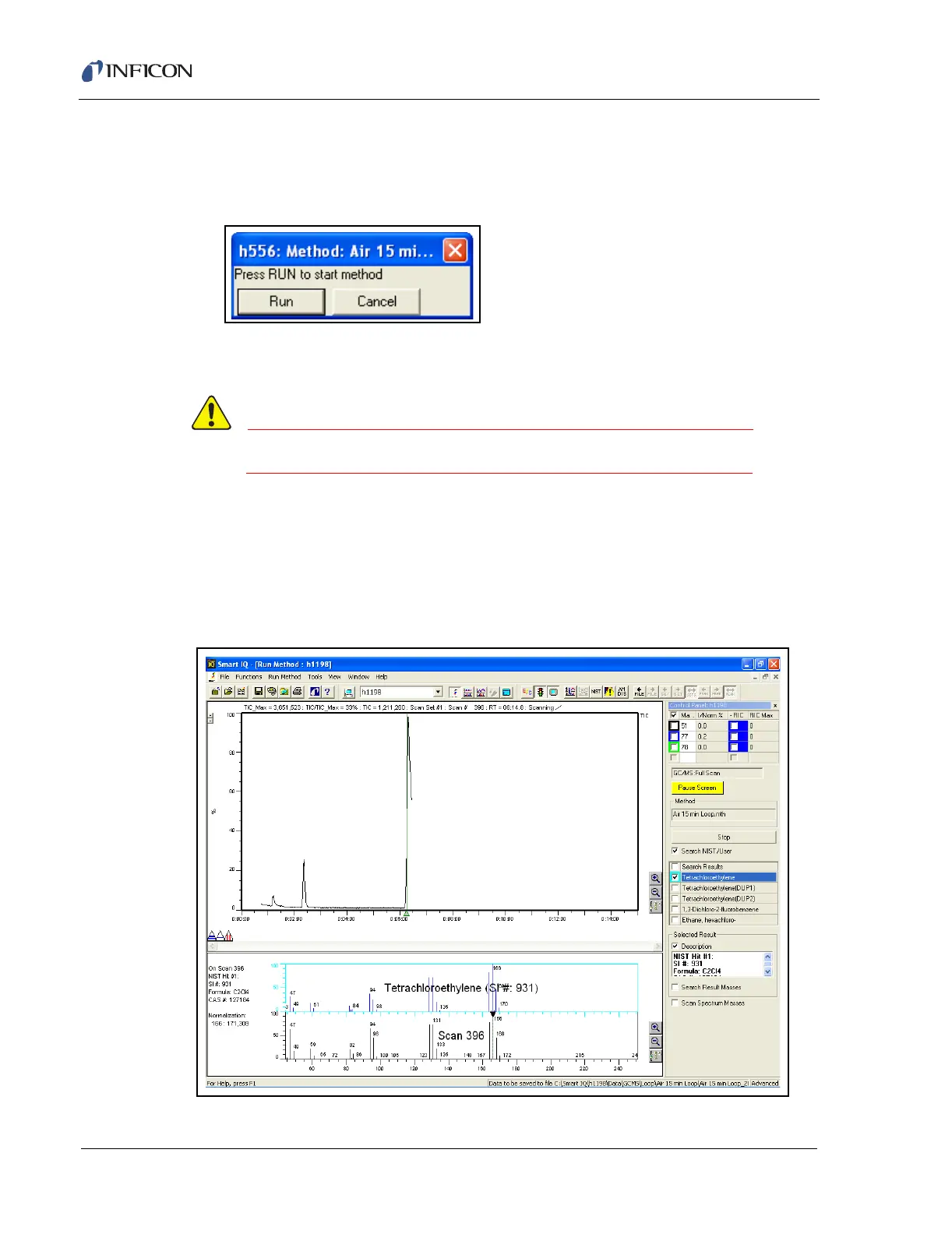

6 Click the Run button in the pop-up window of the software. See Figure 5-22.
Figure 5-22 Run Prompt
7 Hold the probe over the sample for the entire loopfill event.
Do not place the sample probe in liquids while sampling.
HINT: An audible sound indicates the sample pump has turned on and the
word Loopfill will be displayed on the front panel in the bottom left
corner. Hold the probe over the sample for this entire 60 second period.
8 Wait for the method to run to completion. the 3 plots shown in Figure 5-23 and
Figure 5-24 show examples of data collection.
Figure 5-23 Air 15 min Loop Running
