5 - 20
IPN 074-397-P1G
HAPSITE Smart Operating Manual
5 Select 3 min Carbon Conc Cleanout and press OK. See Figure 5-29.

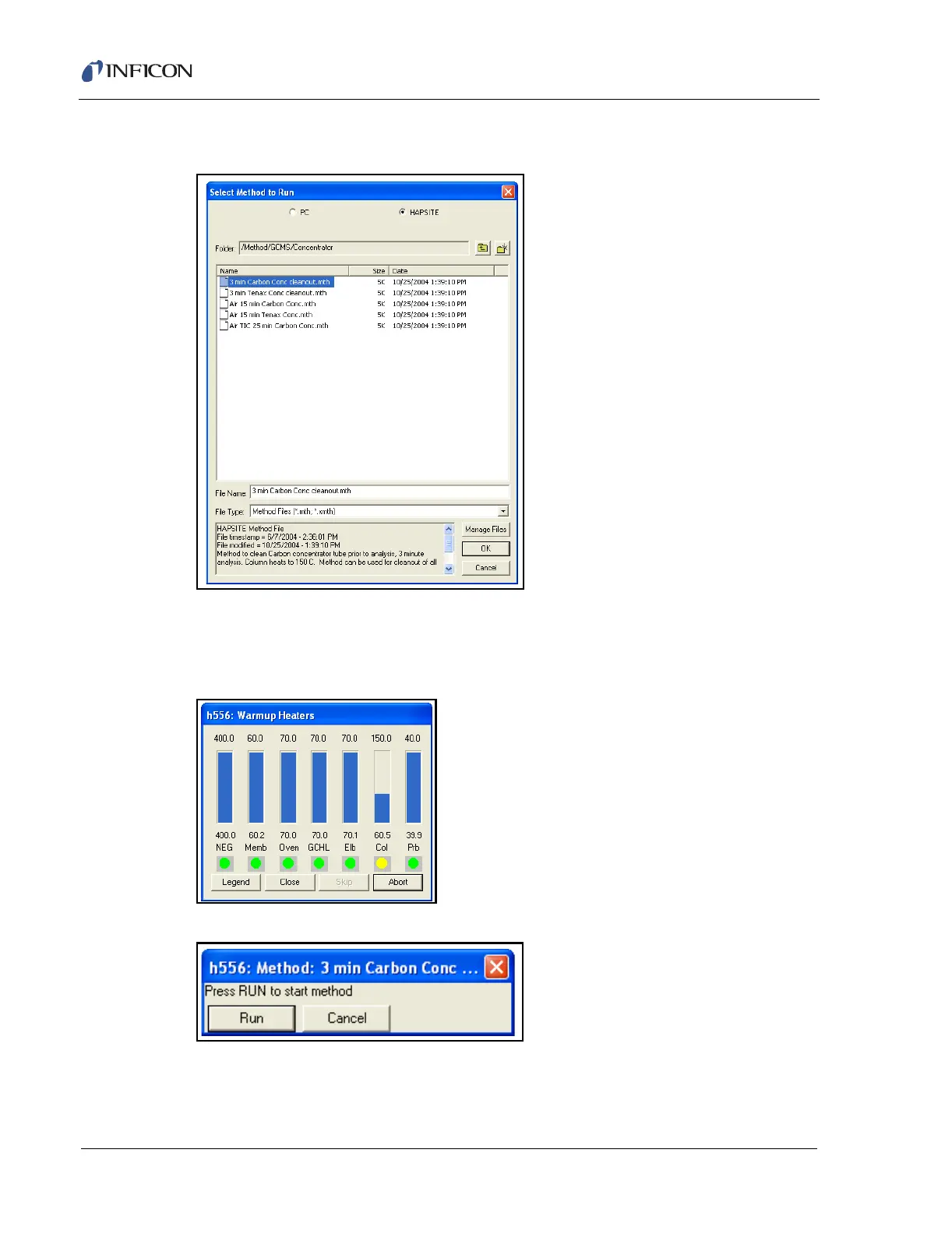

Figure 5-29 Selecting the 3 min Carbon Conc Cleanout Method
The system will raise the column temperature to 150 °C, which will take a few
minutes. When all the zones are heated the Run Method prompt will be displayed.
See Figure 5-30 and Figure 5-31.
Figure 5-30 Heater Warm-up for the 3 min Carbon Conc Cleanout
Figure 5-31 Run Prompt
6 Press the RUN button. This run will take three minutes to complete. The
progress of the run can be seen on the laptop.
