7 - 8

IPN 074-397-P1G

HAPSITE Smart Operating Manual

5 Select default.tun file and press OK. See Figure 7-13.

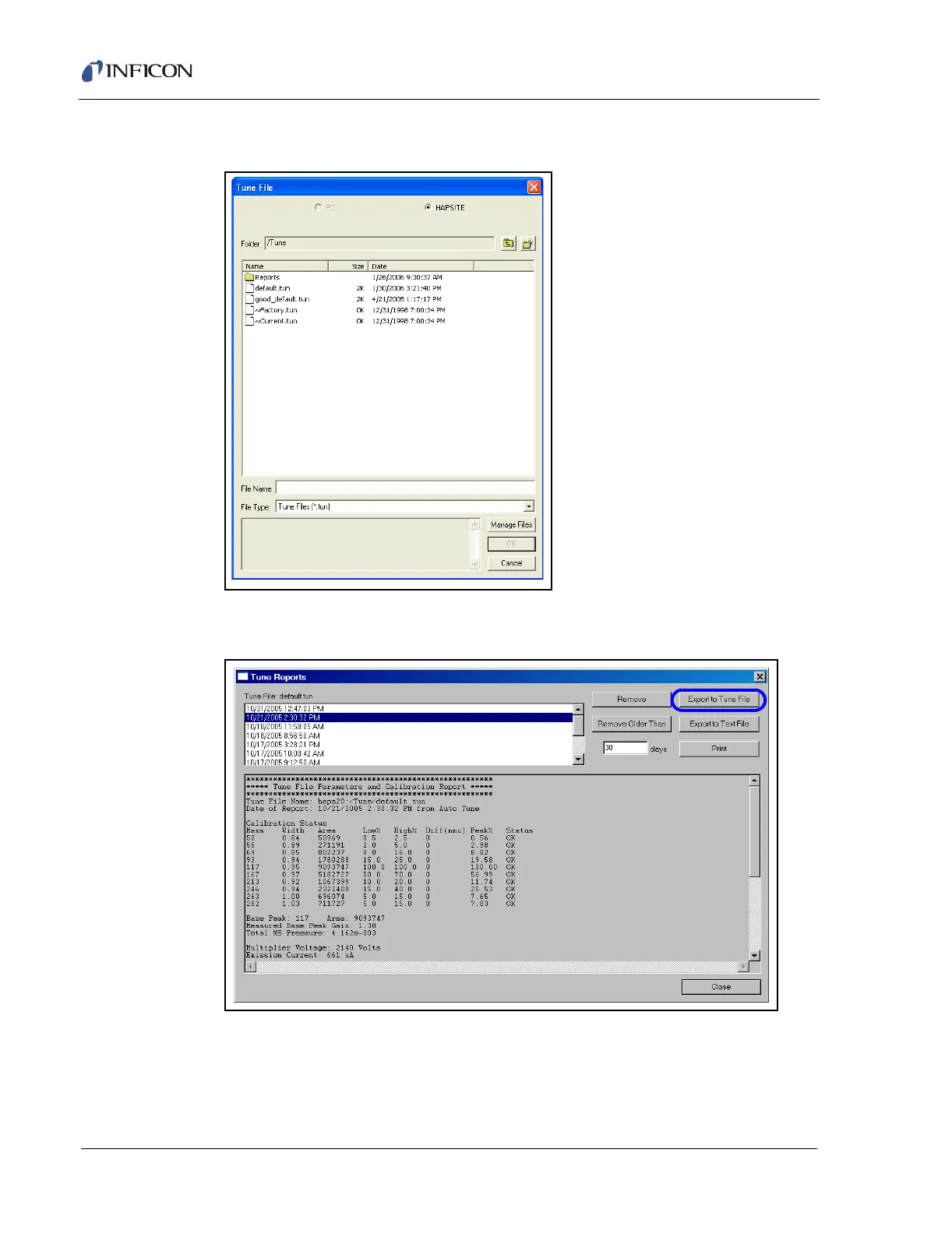

Figure 7-13 Select "default.tun" File

6 Highlight a "good" tune report. Select Export to Tune File. See Figure 7-14.

Figure 7-14 Export Good Tune to Current Tune File
