8 - 21
IPN 074-397-P1G
HAPSITE Smart Operating Manual

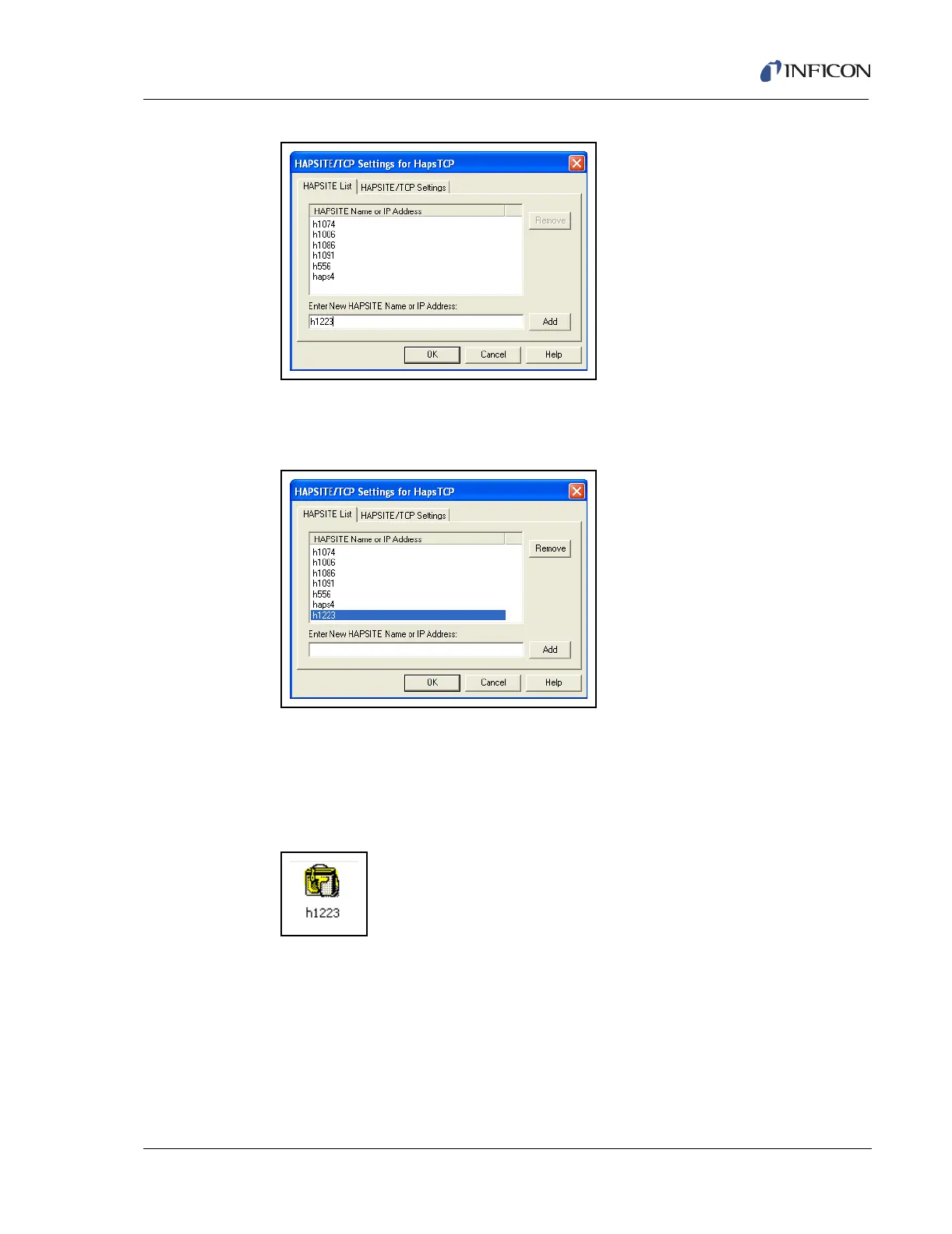

Figure 8-35 Add HAPSITE to Port Settings List
4 The newly added HAPSITE will appear in the HAPSITE List. Press OK. See
Figure 8-36.
Figure 8-36 New HAPSITE on Port Settings List
5 Press OK on the System Properties Window. See Figure 8-34.
6 The newly added HAPSITE icon will now appear at the bottom of the System
Setup Window. If the HAPSITE appears as in Figure 8-37, then
communications have been established.
Figure 8-37 Newly Added HAPSITE
6a If the HAPSITE icon appears with a Blue "X" through the icon, then
communication has not been fully established. See Figure 8-38.
