8 - 33
IPN 074-397-P1G
HAPSITE Smart Operating Manual

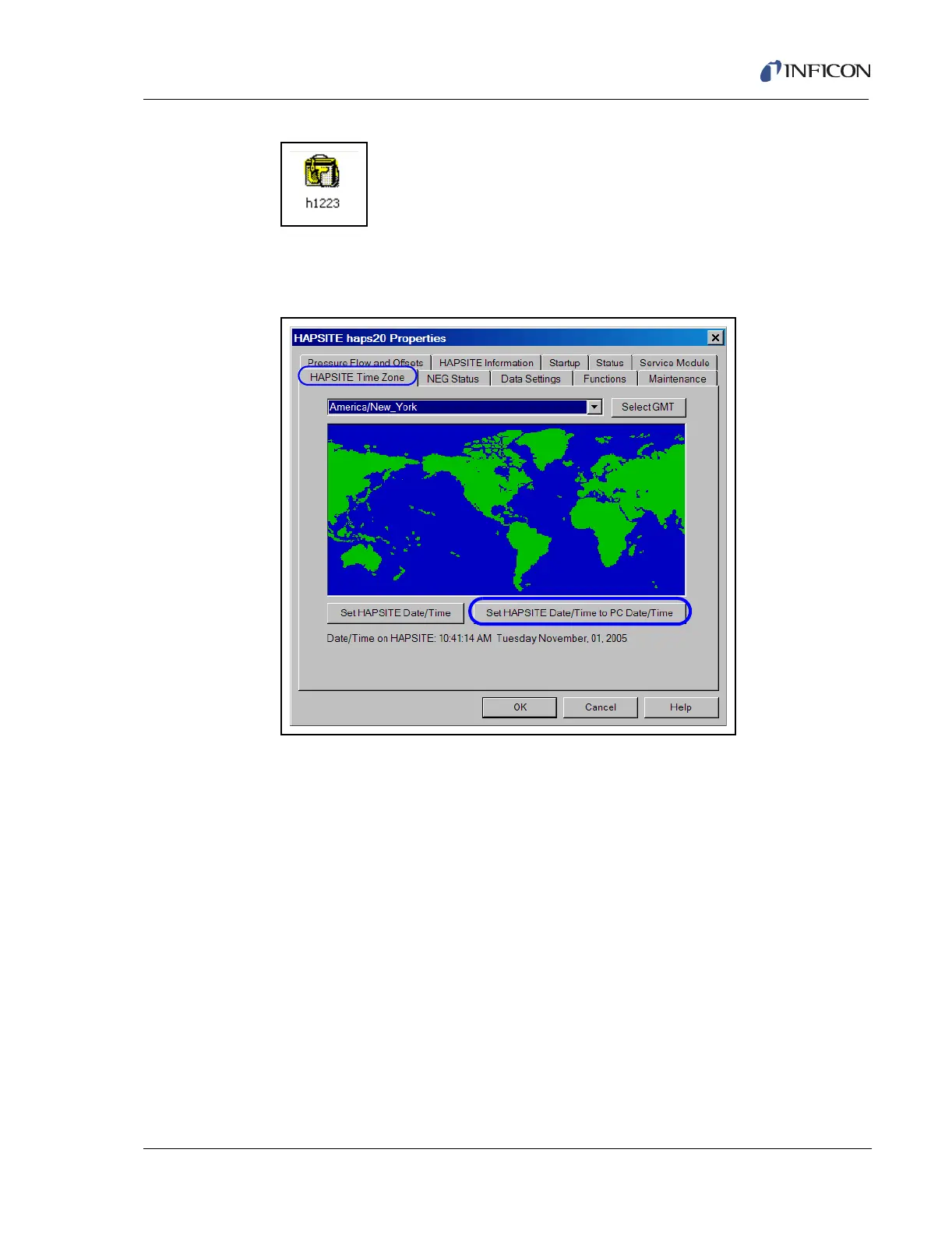

Figure 8-57 HAPSITE Sensor Icon
3 Click on the HAPSITE Time Zone tab in the Properties Window. See Figure
8-58.
Figure 8-58 HAPSITE Time Zone Tab
4 Select the correct Time Zone from the drop-down list above the map.
5 Press OK and restart the HAPSITE. A restart is required to set the Time Zone.
6 Return to the dialog shown in Figure 8-58 to synchronize the PC and HAPSITE
data and time.
7 Click on Set HAPSITE Date/Time to PC Date/Time. Press OK. Refer to Figure
8-58.
8 The HAPSITE will be synchronized with the Date and Time of the computer.
