9 - 12
IPN 074-397-P1G
HAPSITE Smart Operating Manual

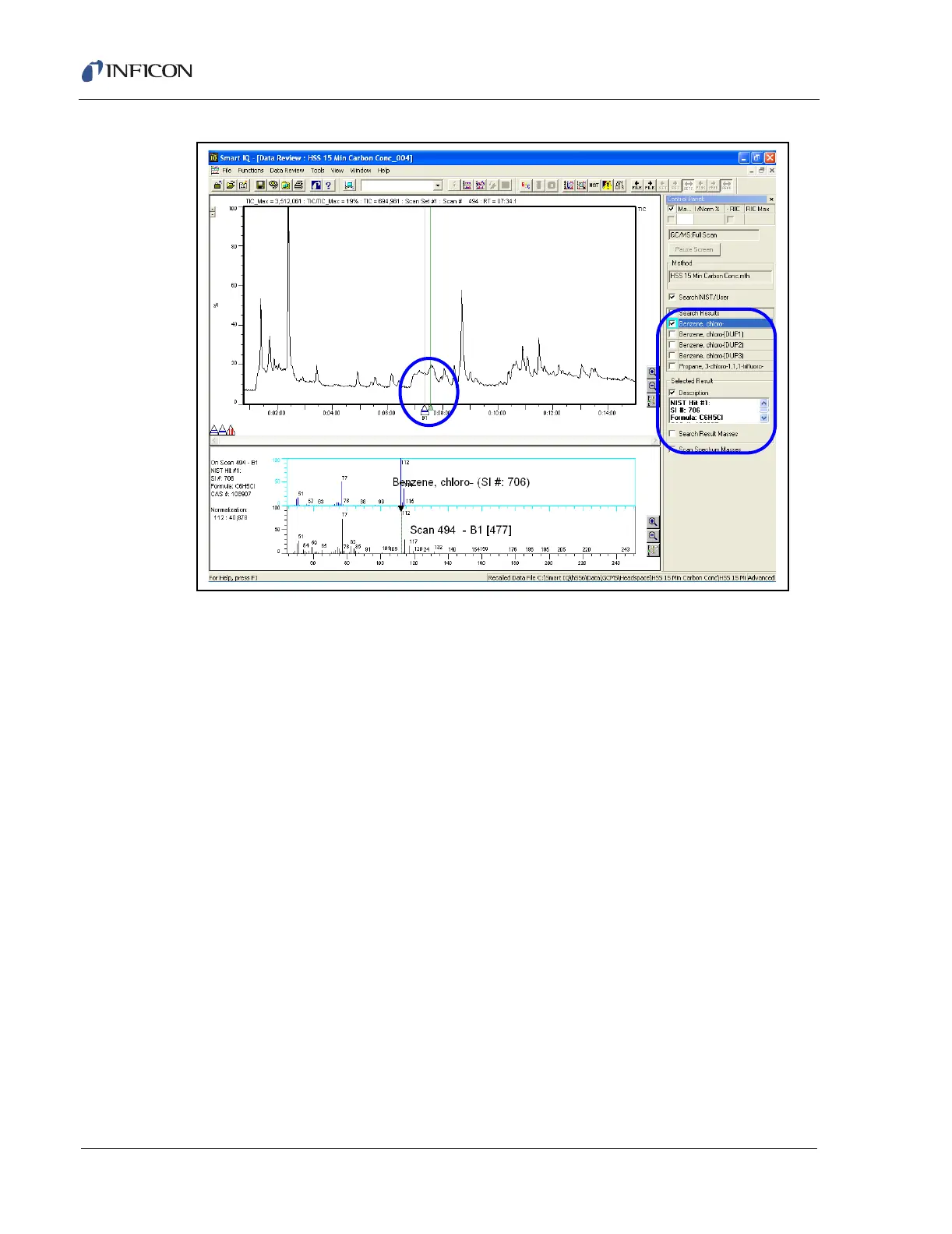

Figure 9-11 Using Background Subtract
3 Select the background subtract blue triangle from the lower left side of the
chromatogram and drag to an area on either side of the selected peak. Refer
to Figure 9-11.
4 The identification is now chlorobenzene with three duplications. The first ID has
an SI# of 706. Refer to Figure 9-11.
NOTE: Both background subtract tools can be used if two background subtract
ranges are desired.
