9 - 28
IPN 074-397-P1G
HAPSITE Smart Operating Manual
Qualitative identification of each peak found by the Search function can be done by
checking either Search in NIST, Search in AMDIS or both. After the search is
selected and the Search button is clicked, the screen shown in Figure 9-35 is
displayed.

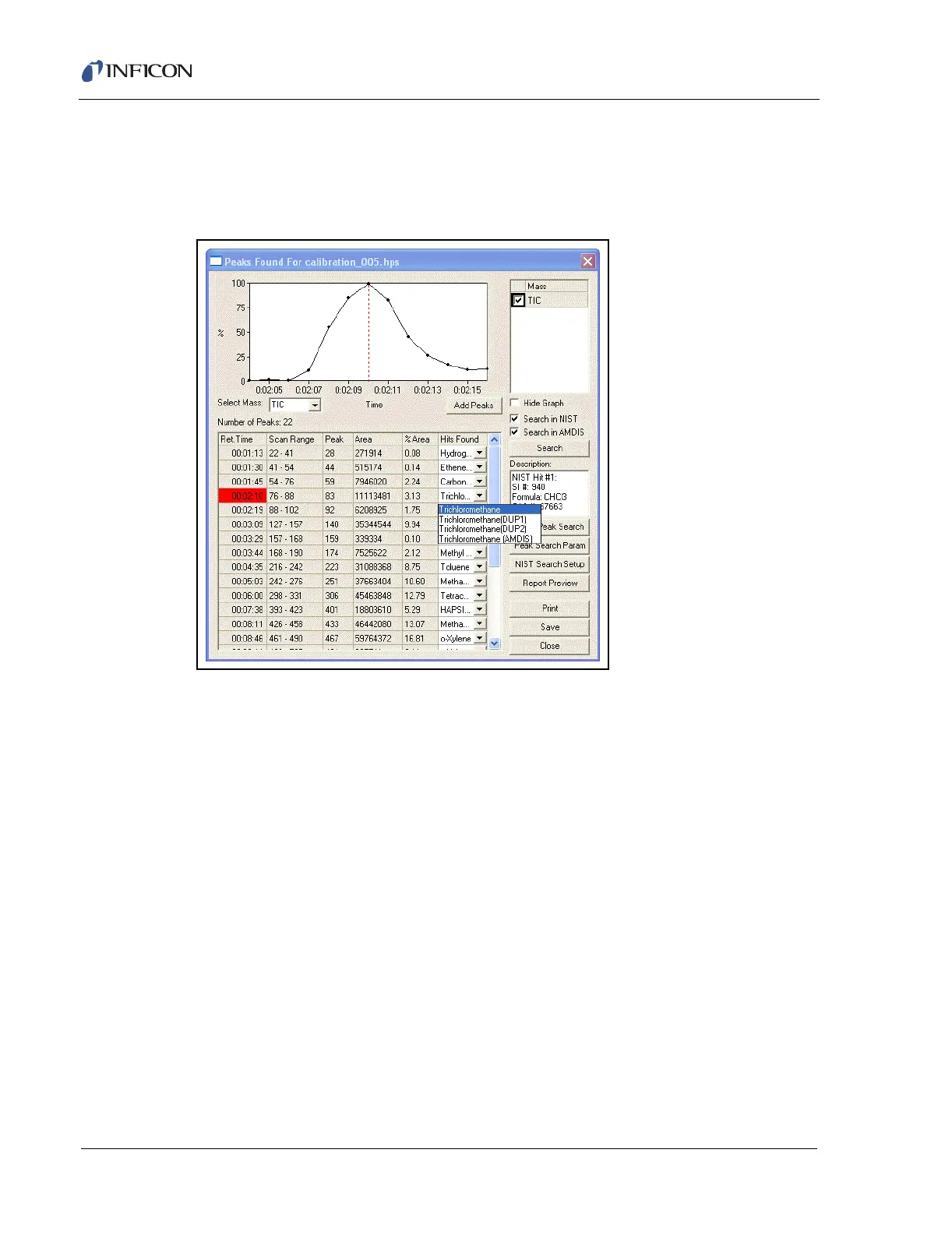

Figure 9-35 Identification of Each Peak
When the search is completed, each peak will have identifications in the Hits
Found section of the table. Click on the arrow button next to each peak in the Hits
Found section to display all of the hits as per the Search Parameters.
NOTE: When the Hits Found are displayed, the hits found in the AMDIS library will
have the words (AMDIS) displayed. NIST hits do not display the word
(NIST).
From the Peaks Found screen, other functions can be accessed:
NIST Search Setup, where the libraries that NIST will use are defined
Peak Search Parameters, where parameters can be changed to improve the
search
Redo Peak Search, where the search can be reanalyzed after changes to the
Peak Search Parameters have been made.
To print a report of the results, click on the Report Preview button. This will result
in the following screen being displayed.
