11 - 46
IPN 074-397-P1G
HAPSITE Smart Operating Manual
Figure 11-46 Choose Method
4 Refer to section 11.2, Description Page, on page 11-3 through section 11.9,
Data Page, on page 11-41 for details on changing options.
5 To save a newly created method from the Method Editor, press the Save button

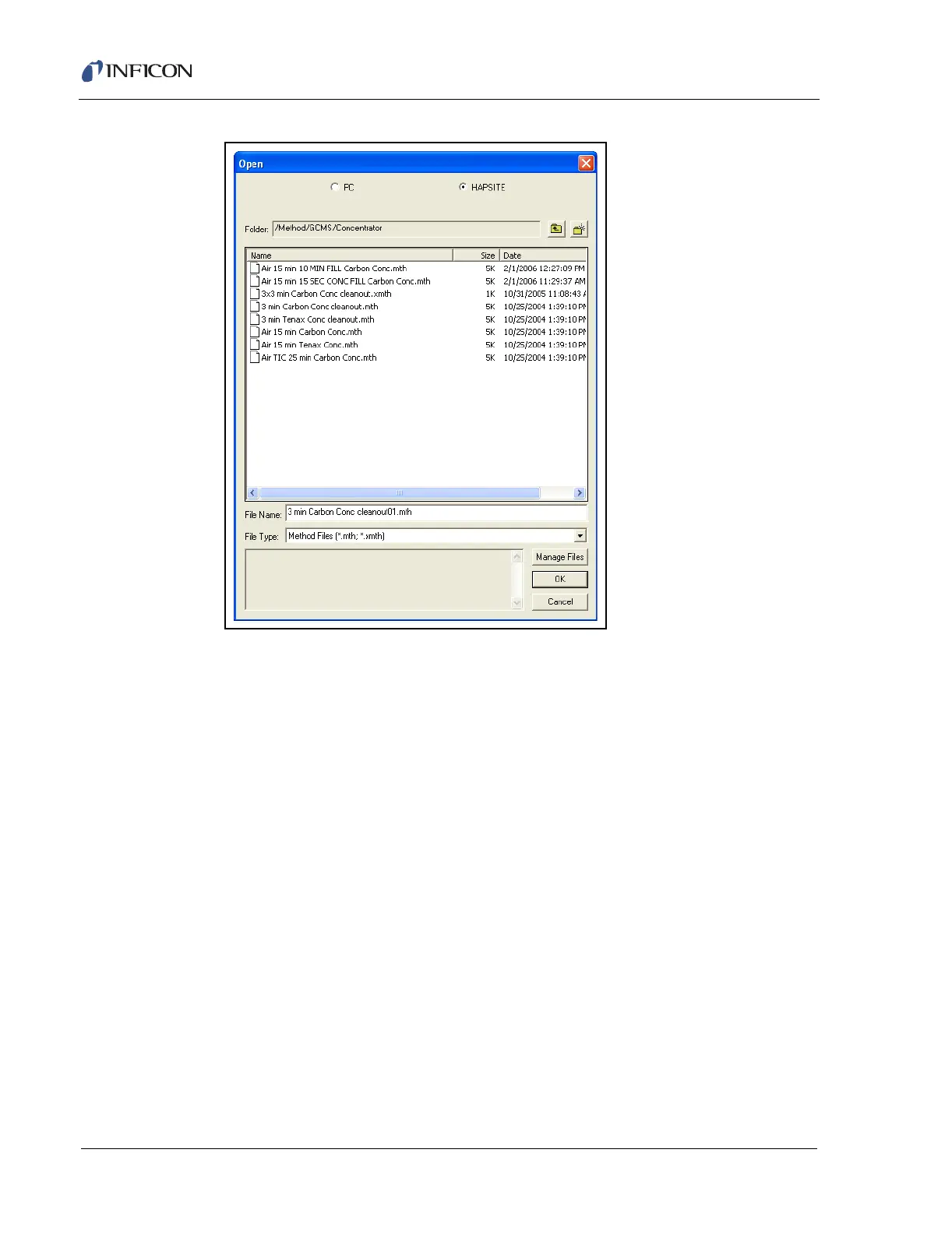

at the bottom of the Method Editor Summary Page (see Figure 11-43). The
dialog window shown in Figure 11-47 is displayed. Notice that the default
location to save a method file is to the HAPSITE.
NOTE: Method files can be saved to the HAPSITE only if the HAPSITE is attached
to the PC. Refer to section 2.3.6, Connect Laptop (if desired), on page 2-9
for additional information on how to connect the laptop and HAPSITE.
