15 - 23

IPN 074-397-P1G

HAPSITE Smart Operating Manual

3 Wearing safety glasses and gloves, clean the o-ring on the VI valve with

methanol. See Figure 15-18.

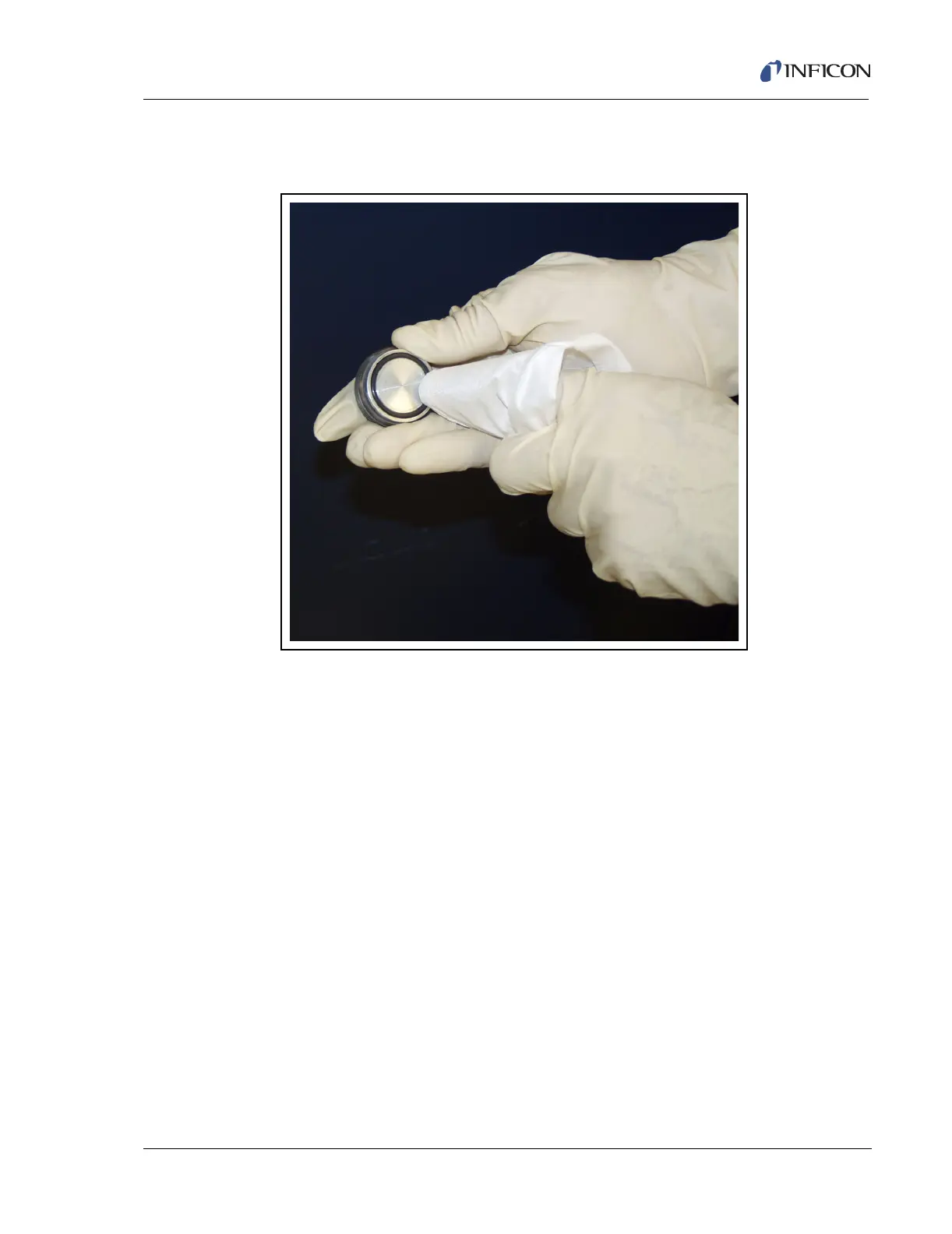

Figure 15-18 Cleaning VI Valve O-ring
