15 - 24

IPN 074-397-P1G

HAPSITE Smart Operating Manual

4 Clean the bottom of manifold where the VI valve was removed with methanol.

See Figure 15-19.

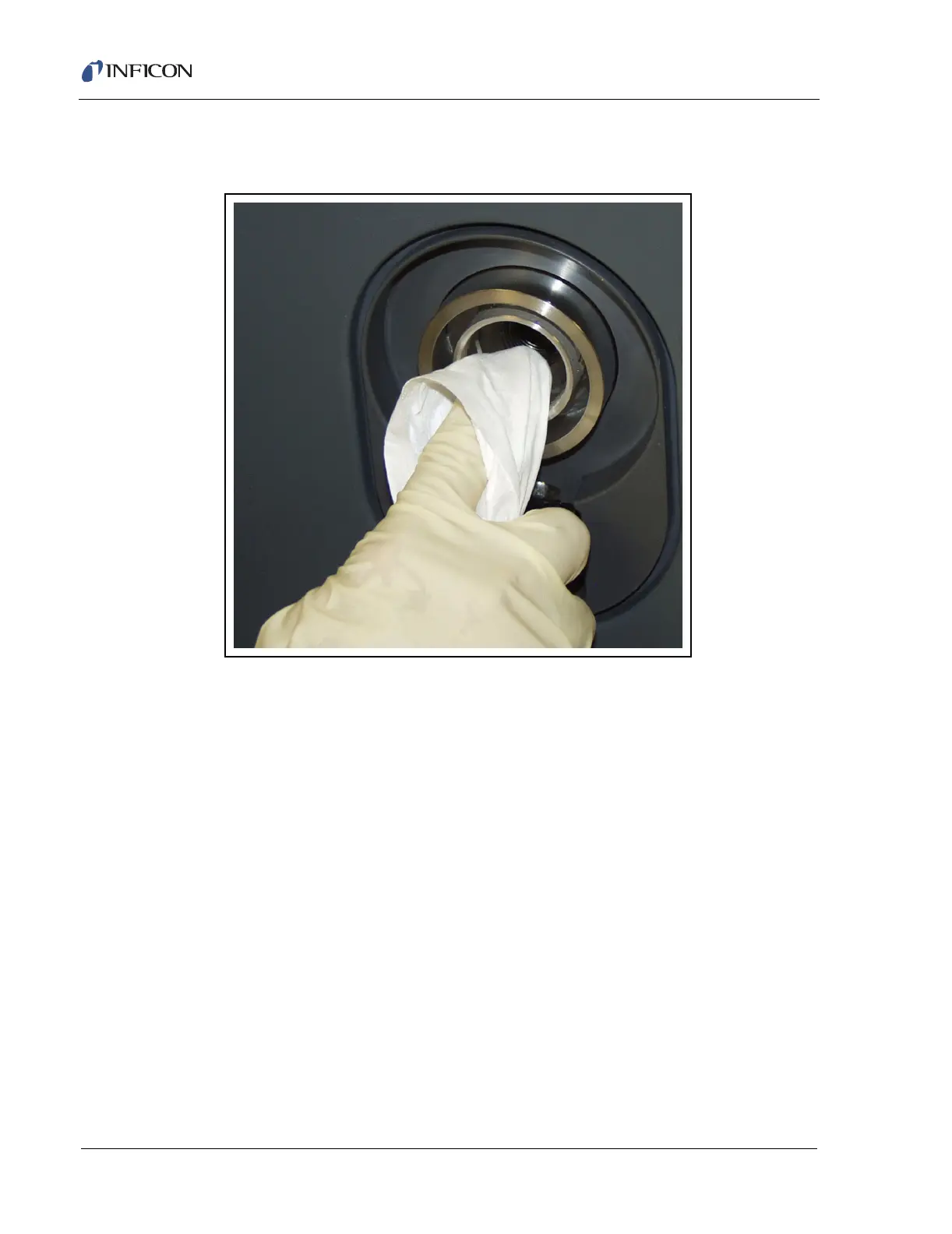

Figure 15-19 Cleaning Bottom of Manifold
