15 - 25

IPN 074-397-P1G

HAPSITE Smart Operating Manual

5 Replace the VI valve into the bottom of manifold. Hand tighten.

See Figure 15-20.

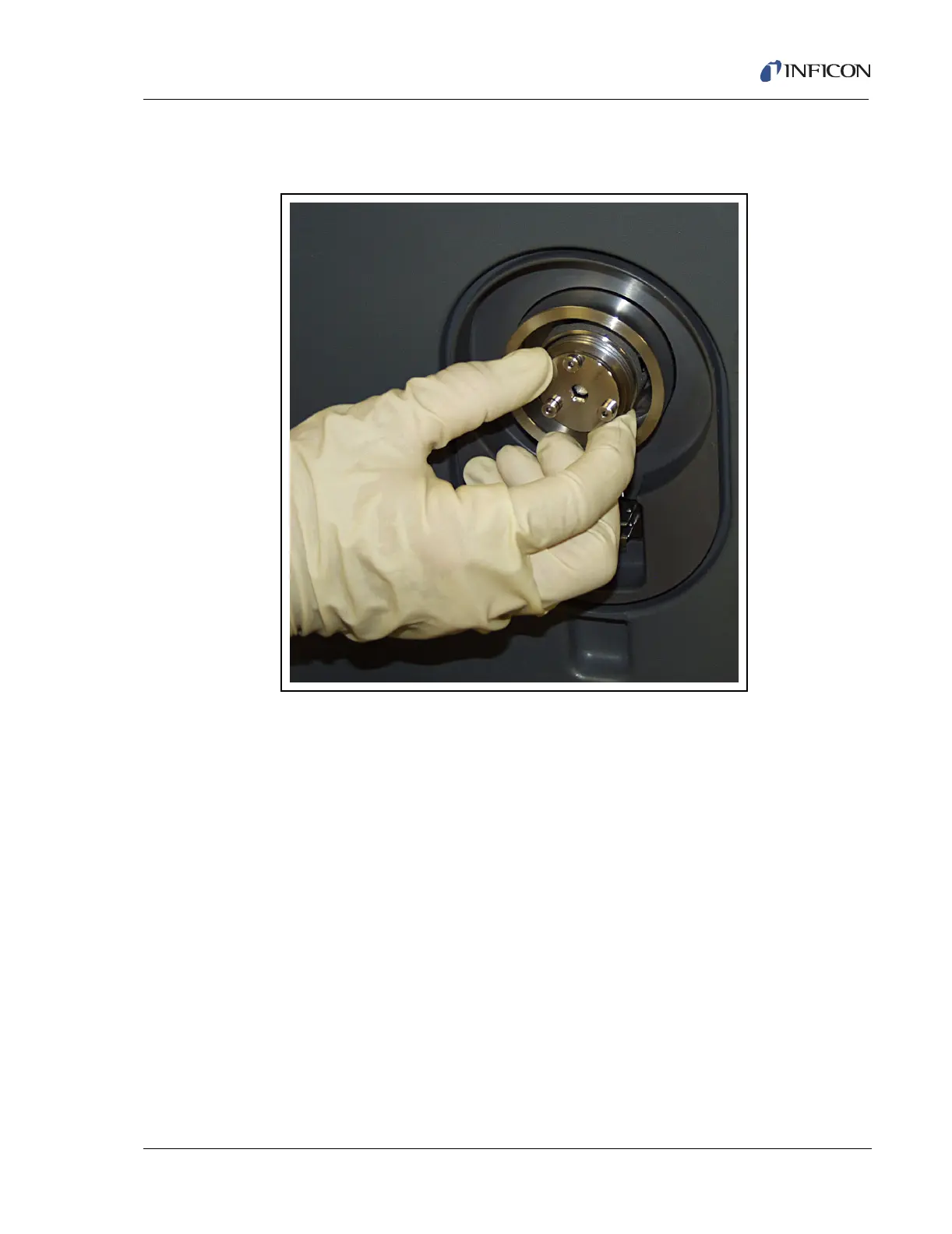

Figure 15-20 Replacing the VI Valve
