HAPSITE Smart Operating Manual

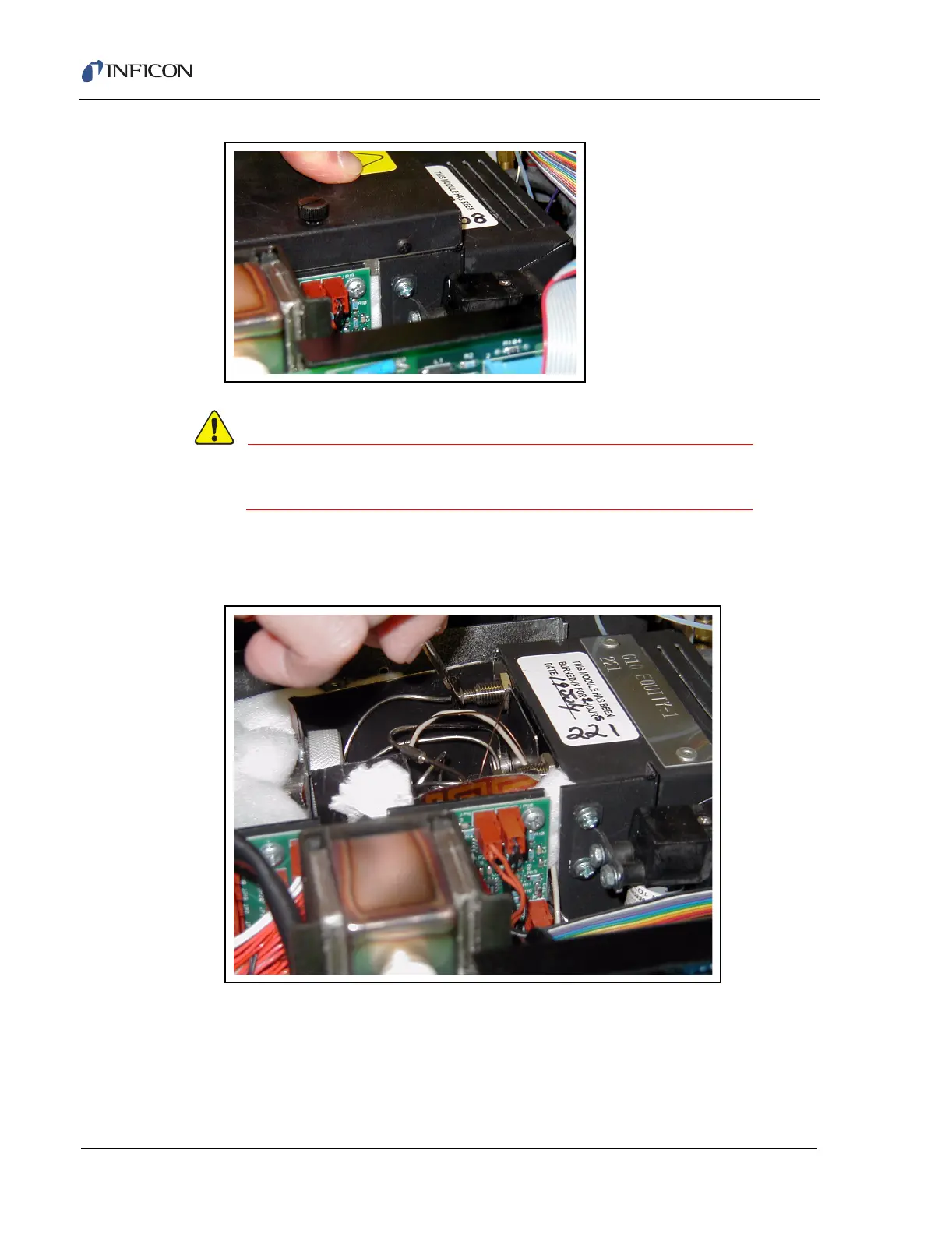

Figure 15-51 GC Cover Removal

WARNING

If not cooled sufficiently, the gas chromatograph and the

isolation valve may be hot enough to cause burns.

3 The lines to the column module must to be removed. Using a 1/4 wrench,

unscrew both Swagelok® nuts as shown Figure 15-52.

Figure 15-52 Column Line Detach
