HAPSITE Smart Operating Manual

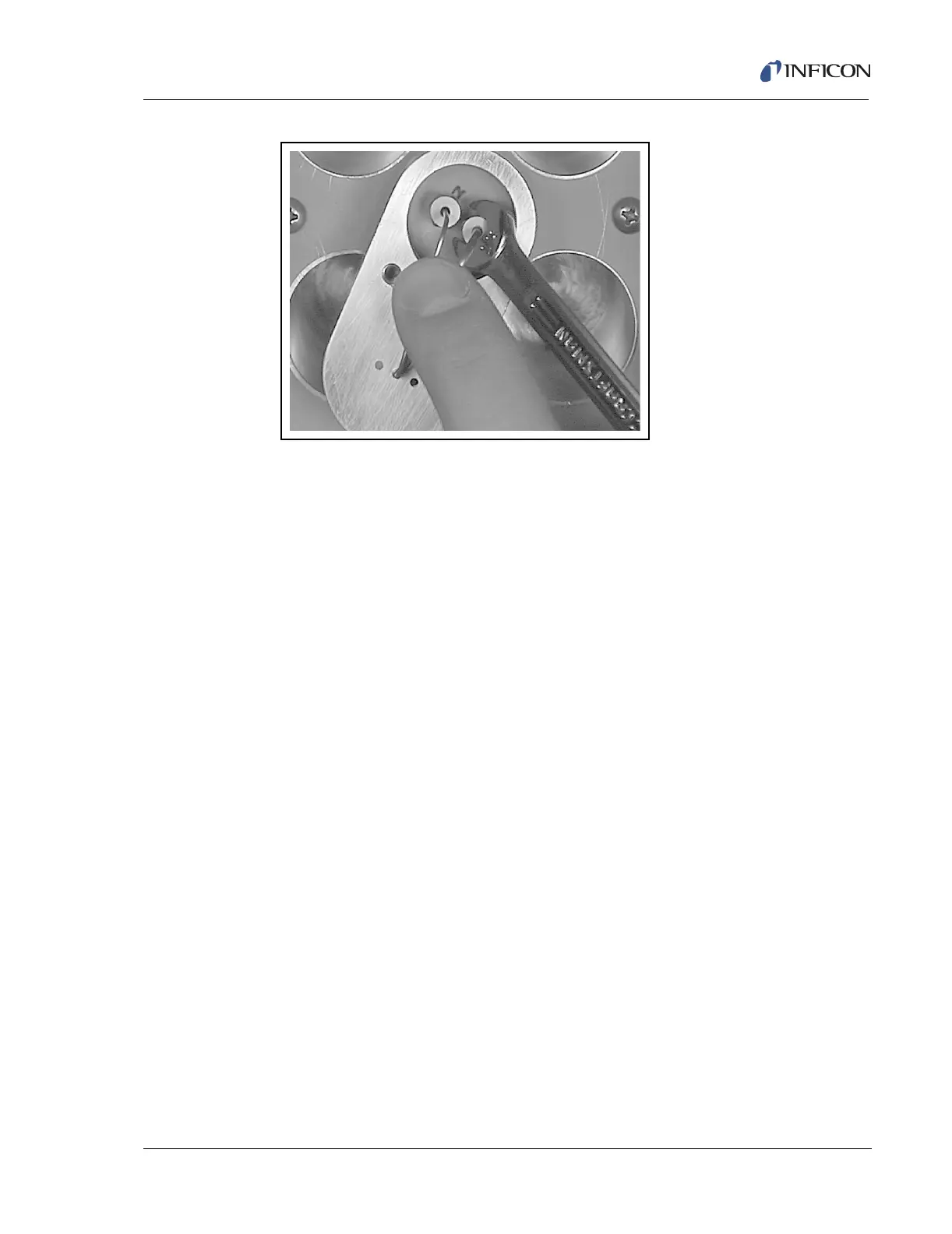

Figure 15-58 Holding Down the Needle while Tightening the Nuts (So Ferrules Seat Properly)

9 Now that the needle is securely in place, replace the cover and two screws.

Tighten both screws using the Phillips screwdriver.

10 The HSS is now equipped with a new needle and is ready to operate.
