HAPSITE Smart Operating Manual

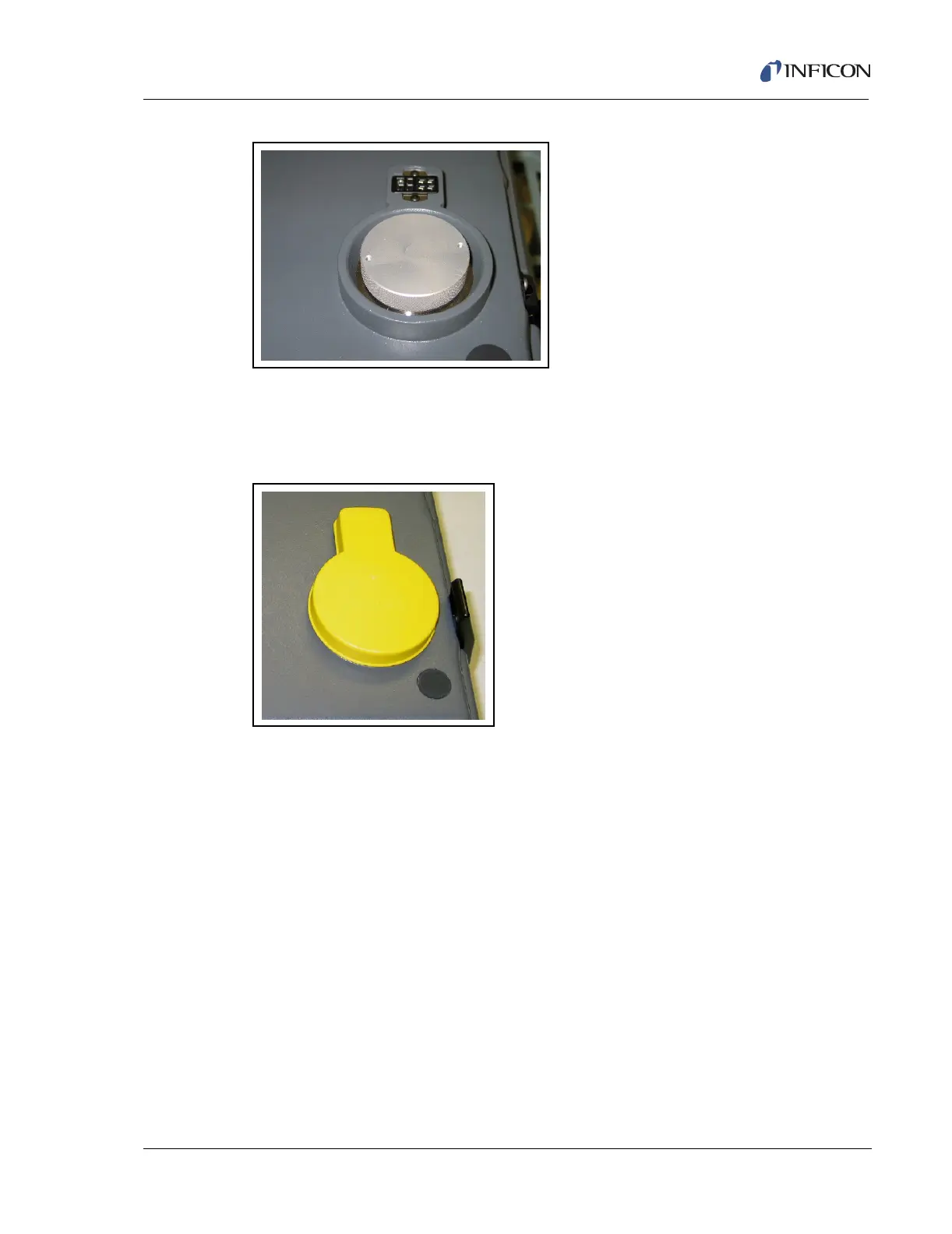

Figure 2-24 Aluminum Storage Plug on Service Module
Covering the aluminum plug is a yellow plastic cover, which aids in protecting the
opening from foreign debris. See Figure 2-25. Remove the yellow cover before
proceeding, and store it in a safe location.
Figure 2-25 Yellow Plastic Protective Cover on Service Module
To prepare the Service Module for use with the HAPSITE, the aluminum plug must
be removed. If under vacuum, then the vacuum must be released by proceeding
as follows:
The Service Module requires a power cable and a RS232 communications cable
to allow communication with the laptop computer. Figure 2-26 shows the power
cable connected at the left back corner of the Service Module.
