2 - 35

IPN 074-397-P1G

HAPSITE Smart Operating Manual

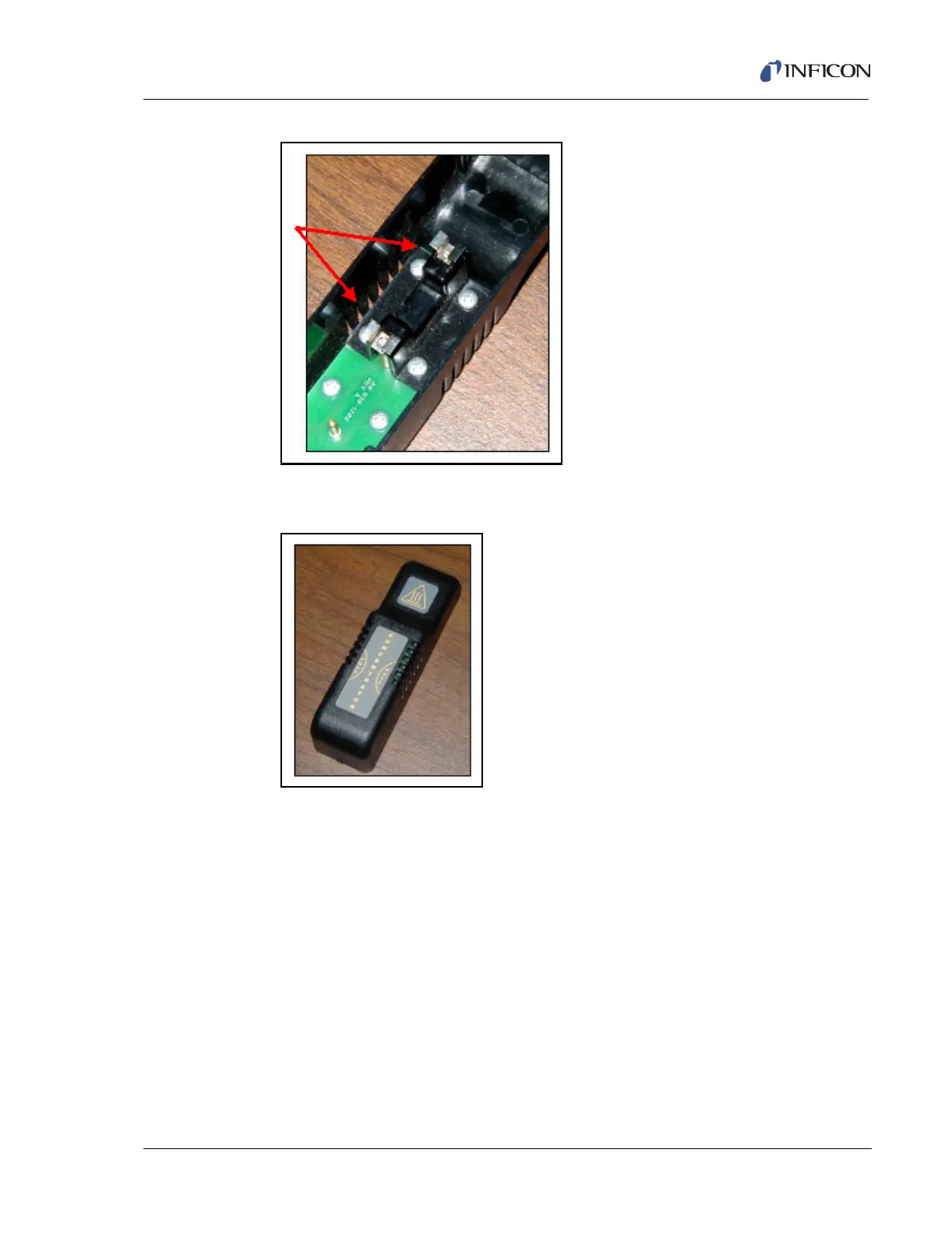

Figure 2-49 Back of Concentrator Cover

9 Install the concentrator cover. See Figure 2-50.

Figure 2-50 Concentrator Cover
