RTC6 boards
Doc. Rev. 1.0.21 en-US
16 Appendix A: The RTC6 Ethernet Board
887
16.2.6 POWER Socket Connector
The POWER socket connector has 2 pins. It is located
on the upper side of the RTC6 Ethernet Board, see
Figure 72, number 3. It serves to provide the voltage
supply for the RTC6 Ethernet Board.
The pin-out is shown in Figure 80.
Notes
• Required parts for the mating connector are
not included in the scope of delivery:
Manufacturer: JST
1× Housing, part number VHR-2N
2× Contact, part number SVH-41T-P1.1.
16.2.7 ETH Connector
The ETH connector is an 8P8C type RJ connector
(colloquially: RJ-45). It is located on the upper side of
the RTC6 Ethernet Board, see Figure 72, number 4. It
serves to connect
(1)
the RTC6 Ethernet Board to the
network.
For status indication the following LEDs are part of
the connector, see Figure 81:
• LED yellow, function “IP address assigned”.
The LED is permanently on as soon as the
RTC6 Ethernet Board has an assigned IP address
(static IP, DHCP or as of BIOS 24 link-local
address
(2)
).
Note: Without stored static IP address the
switched-on LED indicates that the IP address
assignment has been carried-out successfully by
DHCP. In case if there is a stored static IP address
a switched-on LED does not mean that the
IP address is valid in the subnet in every case. As
soon as the board has been acquired by a PC the
LED flashes when there is network traffic
(“Traffic”).
• LED green, function “Link / Traffic”.
The LED is permanently on as soon as a
connection is established (“Link”). This is usually
the case when the Ethernet cable is plugged-in
and there is an active router or a LAN adapter at
the remote end.
The LED flashes when there is network traffic
(“Traffic”).

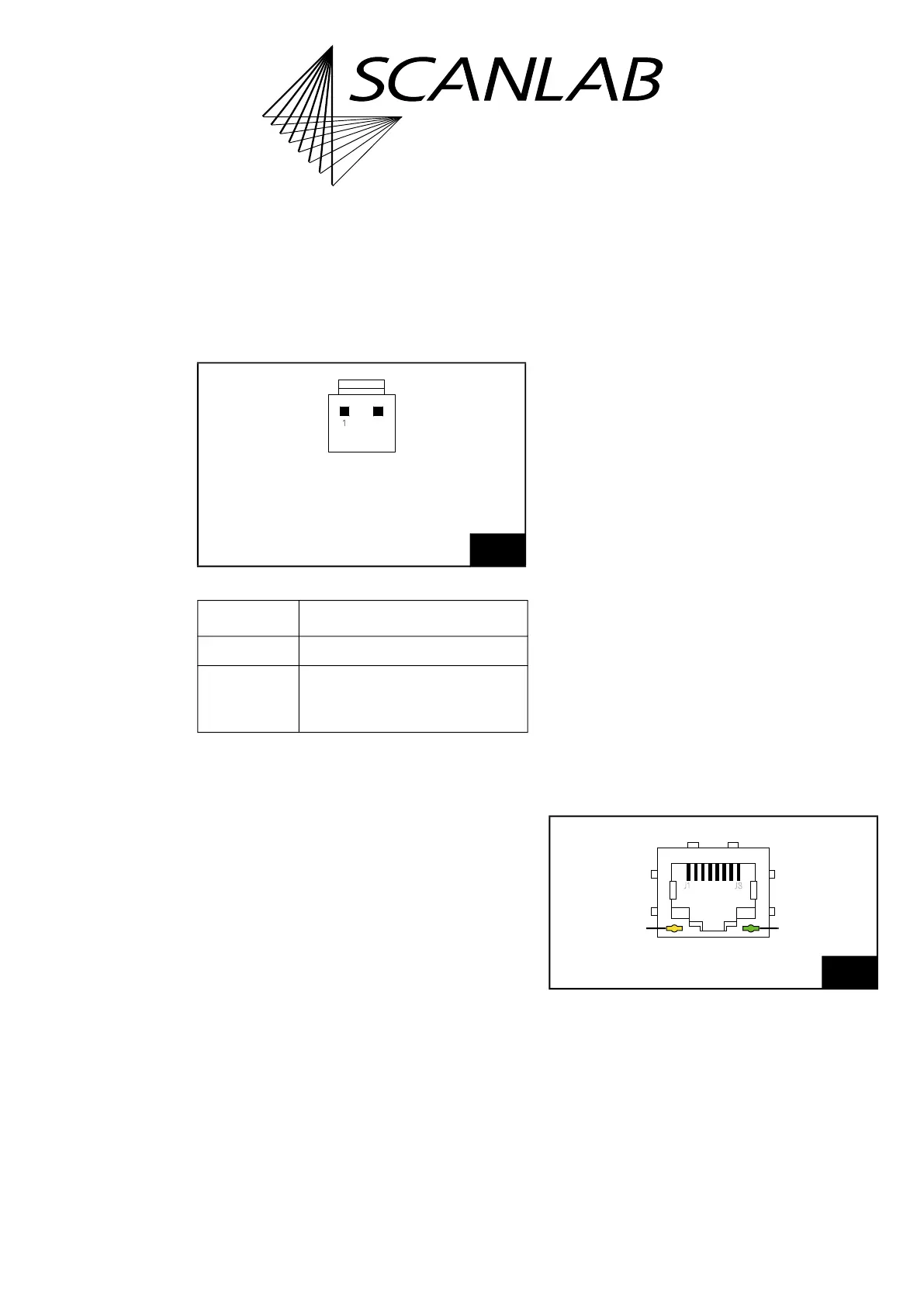

80
POWER socket connector. The pitch of the pins is 3.96 mm.
Pin Power supply
(01) GND Ground.
(02) + Supply See Chapter 16.11 ”Technical
Specifications – RTC6 Ethernet
Board”, page 924.
Manufacturer: JST.
Part Number: B2P-VH(LF)(SN).
GND (01) (02) + SUPPLY
(1) Category 5e (Cat 5e) Ethernet cable recommended.
(2) See page 899.
81
ETH connector. RJ-48 8P8C.
LED yellow LED green
