RTC6 boards
Doc. Rev. 1.0.21 en-US
16 Appendix A: The RTC6 Ethernet Board
888
16.2.8 SPI/ANA/UART Socket
Connector
The SPI/ANA/UART socket connector has 12 pins. It is
located on the upper side of the RTC6 Ethernet
Board, see Figure 72, number 5.
The SPI/ANA/UART socket connector is a hardware
interface intended for analog input ports as well as
for the data exchange methods McBSP (Multichannel
Buffered Serial Port) and RS-232.
The SPI/ANA/UART socket connector corresponds
functionally to the:
•
McBSP/ANALOG socket connector and RS232
socket connector of RTC6 PCIe Boards
The relevant pin-outs are shown in Figure 82.
Notes
• Required parts for the mating connector are
not included in the scope of delivery:
Manufacturer: Amphenol FCI
Series. Minitek
®
1× Housing, part number 90311-012LF
12× Contact, part number 77138-101LF.
Analog Input Ports
The SPI/ANA/UART socket connector provides two
analog input ports:
• ANALOG IN0
– See Section ”Analog Input Ports”, page 86
• ANALOG IN1
– See Section ”Analog Input Ports”, page 86
For technical specifications, see SPI/ANA/UART Socket
Connector, page 928.
McBSP Interface
See Section ”McBSP Interface”, page 84.
RS-232 Interface
With RTC6 Ethernet Boards, the RS232
socket connector pins of the RTC6 PCIe Board are
integrated to the SPI/ANA/UART
(1)
socket connector.
Specifications and further information as with the
RTC6 PCIe Board, see Chapter 4.6.5 ”RS232 Socket
Connector”, page 83.
The signals are referenced to GND, see Notes,
page 882.
82

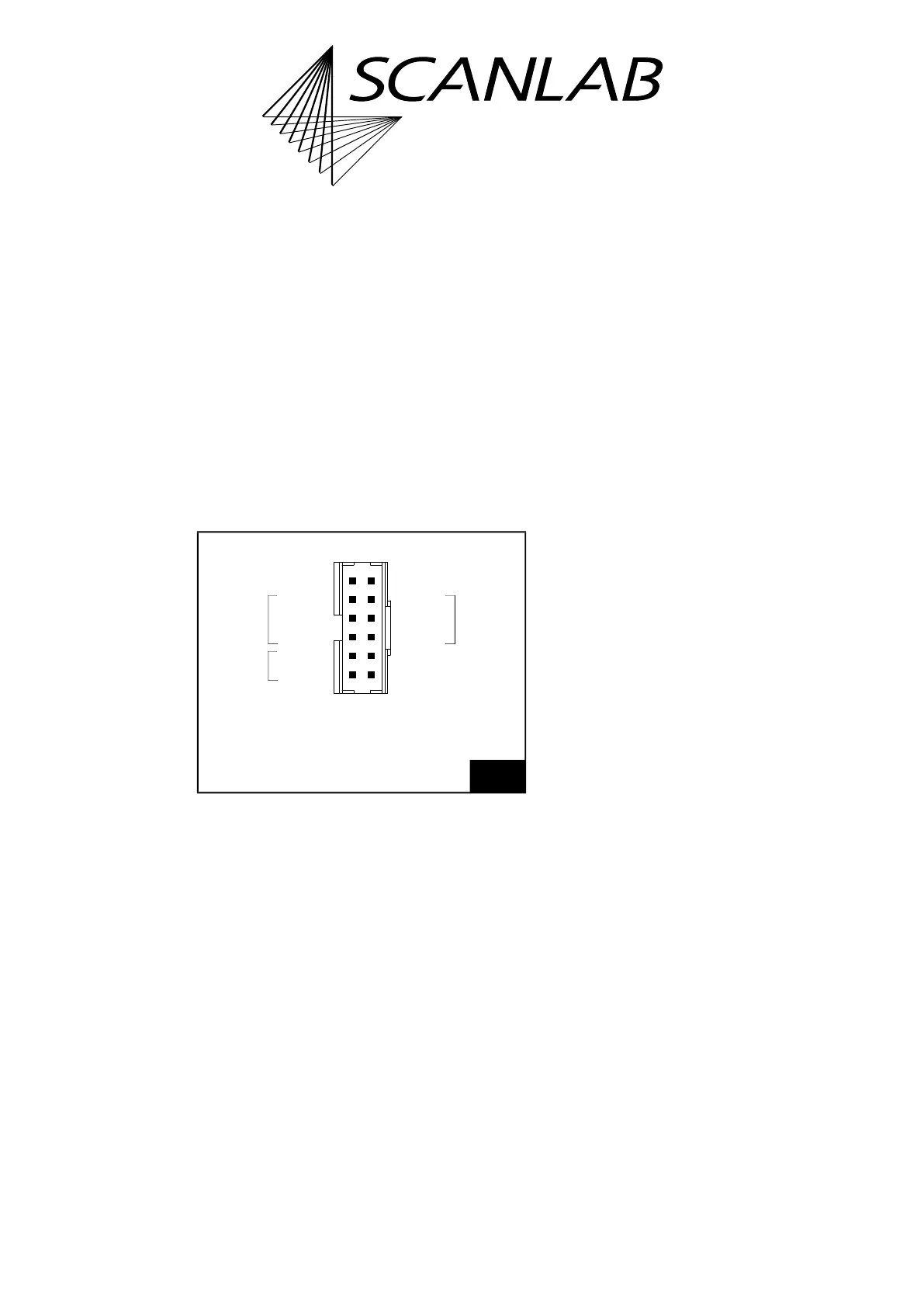

SPI/ANA/UART socket connector: pin-out. The pitch of the
pins is 2.00 mm.
Manufacturer: Amphenol FCI.
Product Number: 98424-F52-12LF.
McBSP
ANALOG IN0 (01) (02) ANALOG IN1
CLKX0 (03) (04) CLKR0
FSX0 (05) (06) FSR0
DX0 (07) (08) DR0
GND (09) (10) 3.3 V
RXD (11) (12) TXD
RS-232
RS-232
McBSP
(1) The socket connector is labeled “…/UART” (Universal
asynchronous receiver/transmitter). Refers to the
electronic circuit which generates the data bits and the
necessary data frame to be transferred on the RS-232
interface.
