Disassembly/Assembly and Adjustment
Figure 5 j0bs40205

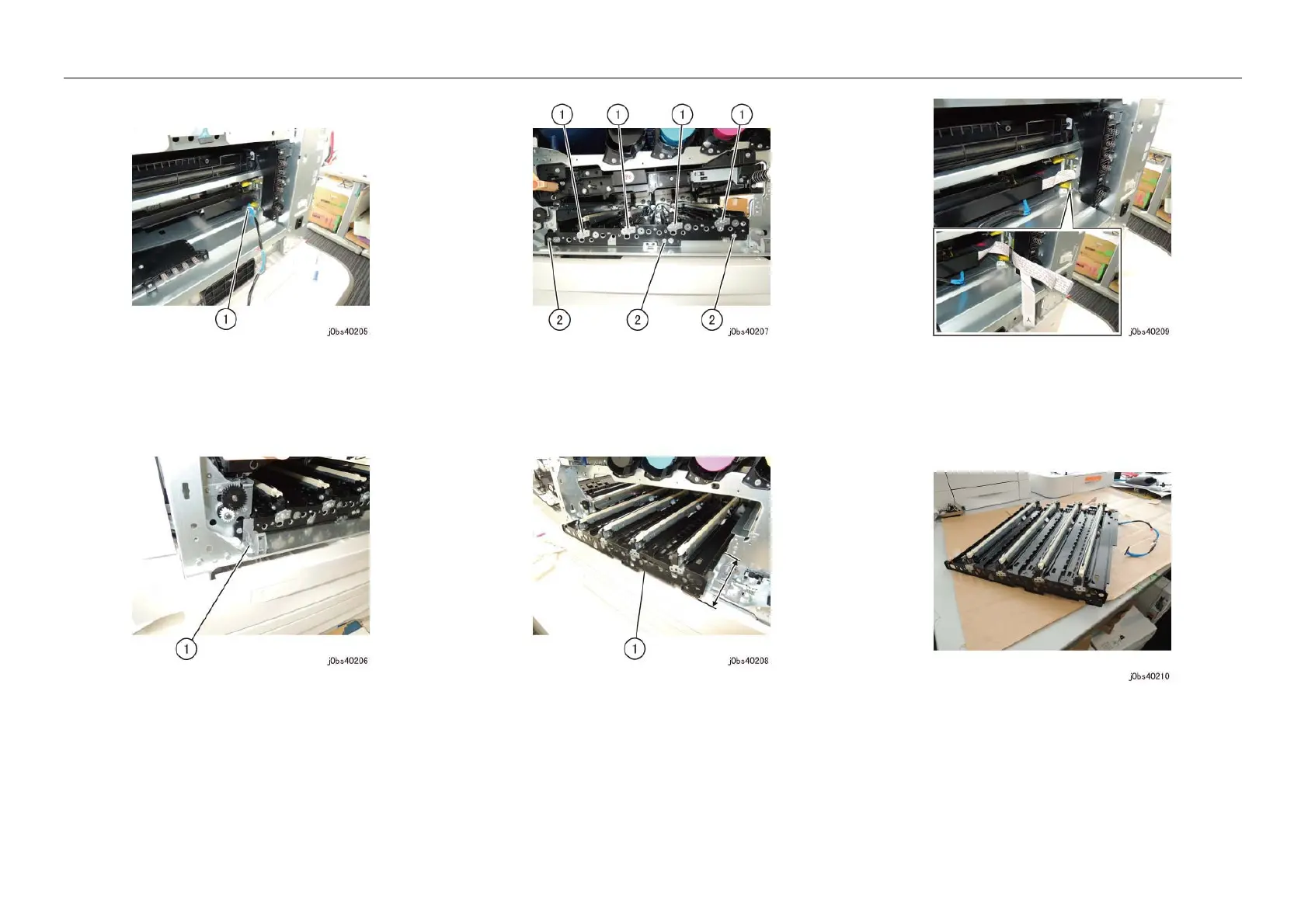

15. Remove the Bottle Support. (Figure 6)
(1) Release the Hook and remove the Bottle Support.
Figure 6 j0bs40206
16. Remove the Screw that secures the LPH and Marking Guide.
(Figure 7)
(1) Remove the Screw (x4) that secure the LPH.
(2) Remove the Screw (x3) that secures the Marking Guide
indicated with the Triangle Mark.
Figure 7 j0bs40207
17. Pull out the LPH and Marking Guide about 10 cm. (Figure 8)
(1) Pull out the LPH and Marking Guide about 10 cm.
Figure 8 j0bs40208
18. Insert the FFC Cable into the machine. (Figure 9)
Figure 9 j0bs40209
19. Remove LPH and Marking Guide.
Reference: This shows the removed LPH and Marking Guide.
(Figure 10)
Figure 10 j0bs40210
20. Move the LPH (Y) to the Front. (Figure 11)
(1) Move the LPH (Y) to the Front until it stops.
To Next Page
