05/2014
6-209
DC SC2020
General
6.4.8.1 Digital Input
Version 1.1
6.4.8.1 Digital Input
Digital Input checks whether the digital input (DI) components function properly.
The display shows [0] when the digital input test is started, and the value will be increased when the DI
components are switched from OFF to ON, which is used for confirming that the component functions
normally.The test targets all DI components.
Digital Input Test Example
This section explains Digital Input Text using [077-303: Front Interlock Switch] as an example.

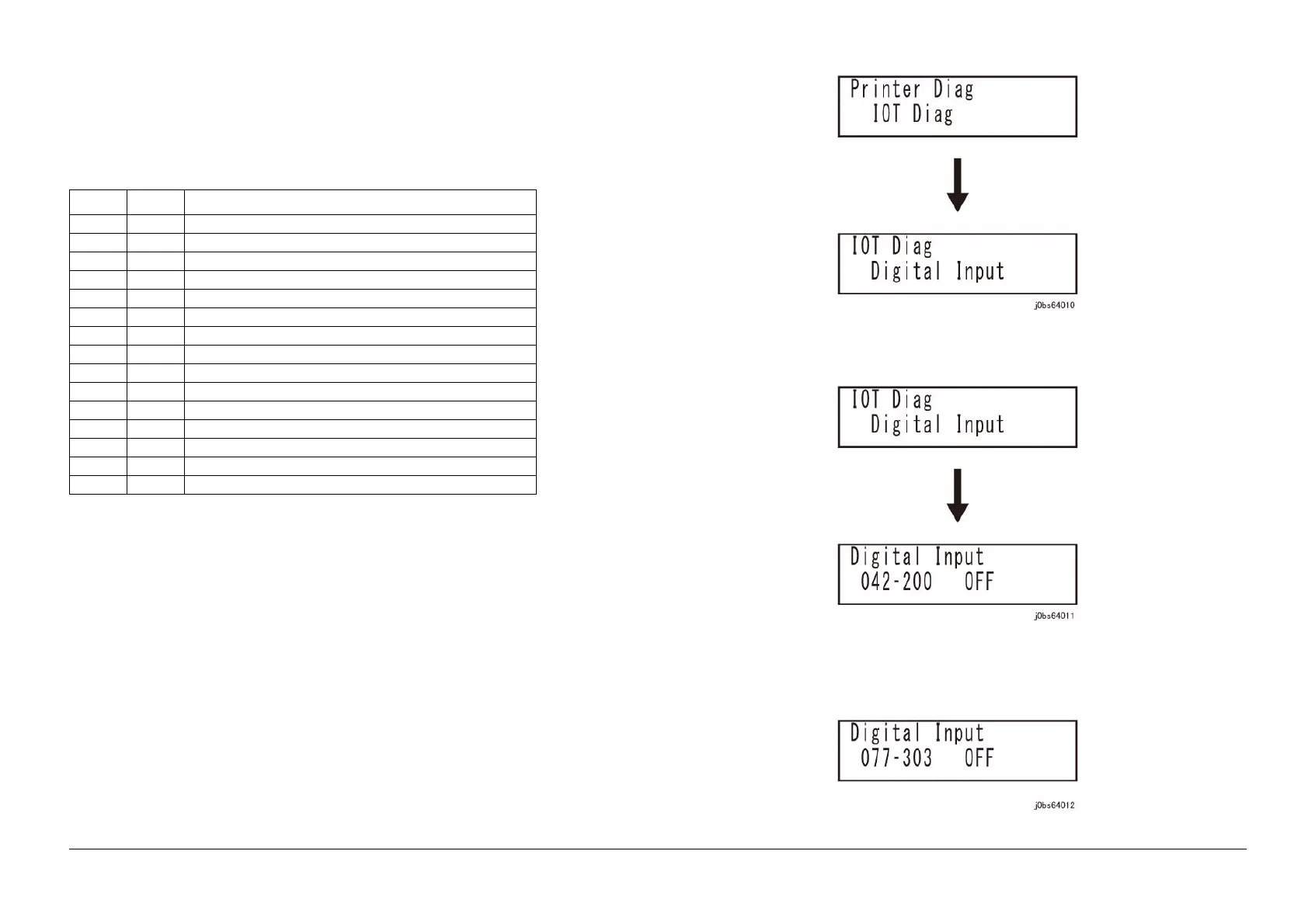

1. Enter the CE mode. (See "6.4.2 How To Enter the CE Mode".)
2. Confirm that the [Printer Diag] is selected, and then press the [OK] button.
3. Use the [Down arrow] button to select [IOT Diag], and press the [OK] button.
Figure 1 j0bs64010
4. Press the [OK] button.
Figure 2 j0bs64011
5. Use the [Down arrow] or [Up arrow] button to select [077-303], and press the [OK] button.
Figure 3 j0bs64012
Table 1 Digital Input Parameter
Chain Link Parameter
042 200 YMC Link Sensor
071 101 #1 No Paper Sensor
071 104 #1 TRAY Paper Size Sensor Digital
072 101 #2 No Paper Sensor
072 102 #2 Level Sensor
072 103 #2 Feed Out Sensor
072 104 #2 TRAY Paper Size SensorDigital
075 100 MSI No Paper Sensor Tray1
077 101 #1 Exit Sensor
077 104 Regi Sensor
077 121 TM Regi Stop Signal input
077 300 Left Hand Interlock Switch
077 303 Front Interlock Switch
077 306 TM Left Hand Interlock Switch
091 200 Waste Toner Full Sensor
To Next Page
