Fuji Xerox DocuCentre SC2020 Service Manual

05/2014
6-210
DC SC2020
6.4.8.1 Digital Input
Version 1.1
General
6. Press the [OK] button.

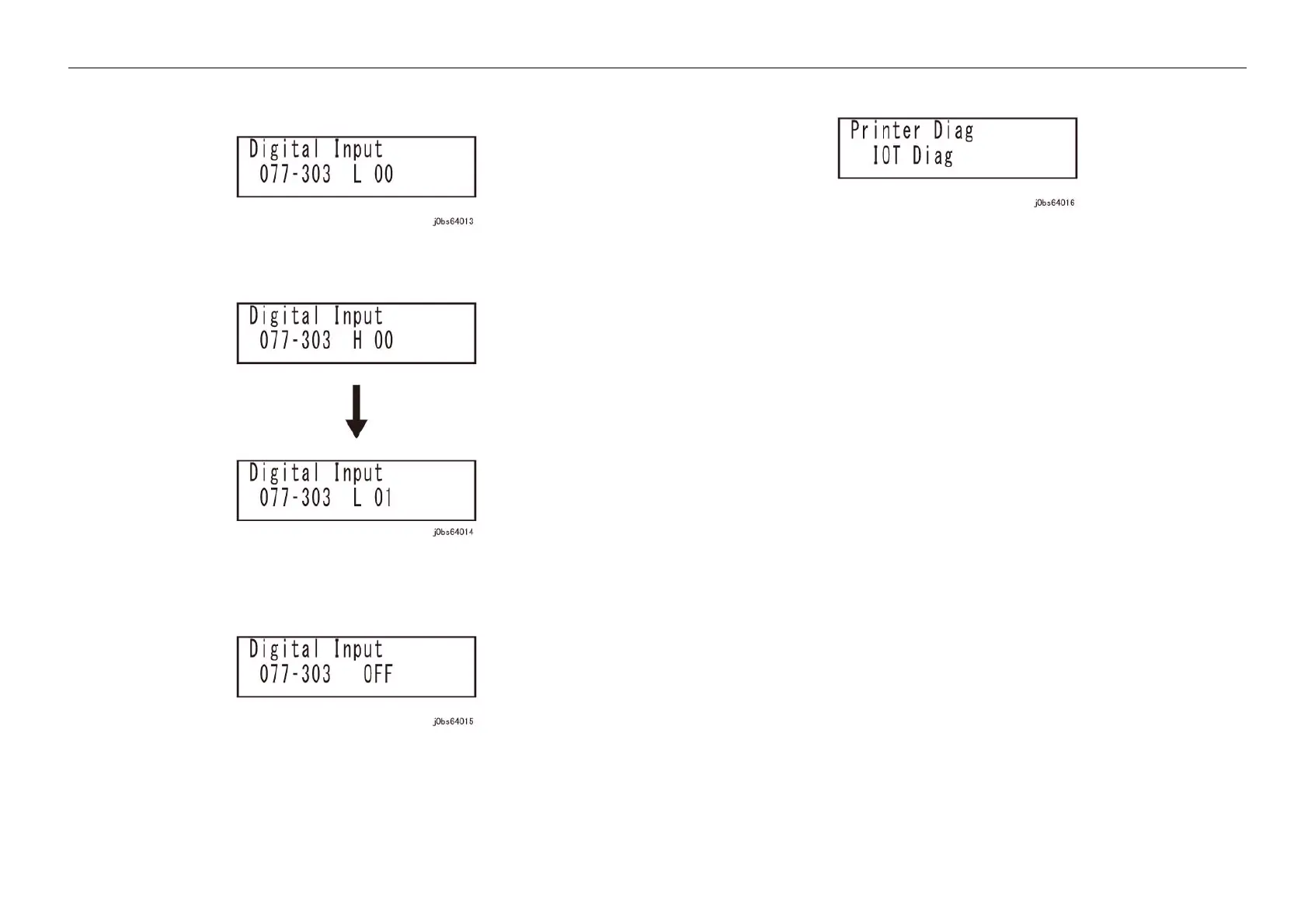

Figure 4 j0bs64013
7. Open and shut the front cover to check that the display changes as shown below.
Figure 5 j0bs64014
8. Press the [<--] (Back) button to stop the test.
Figure 6 j0bs64015
9. Press the [<--] (Back) button to return to the [Printer Diag] screen.
Figure 7 j0bs64016
10. Exit the CE mode. (See "6.4.4 How to Exit the CE Mode".)
