05/2014
6-216
DC SC2020
6.4.8.5 Clear IOT NVM
Version 1.1
General

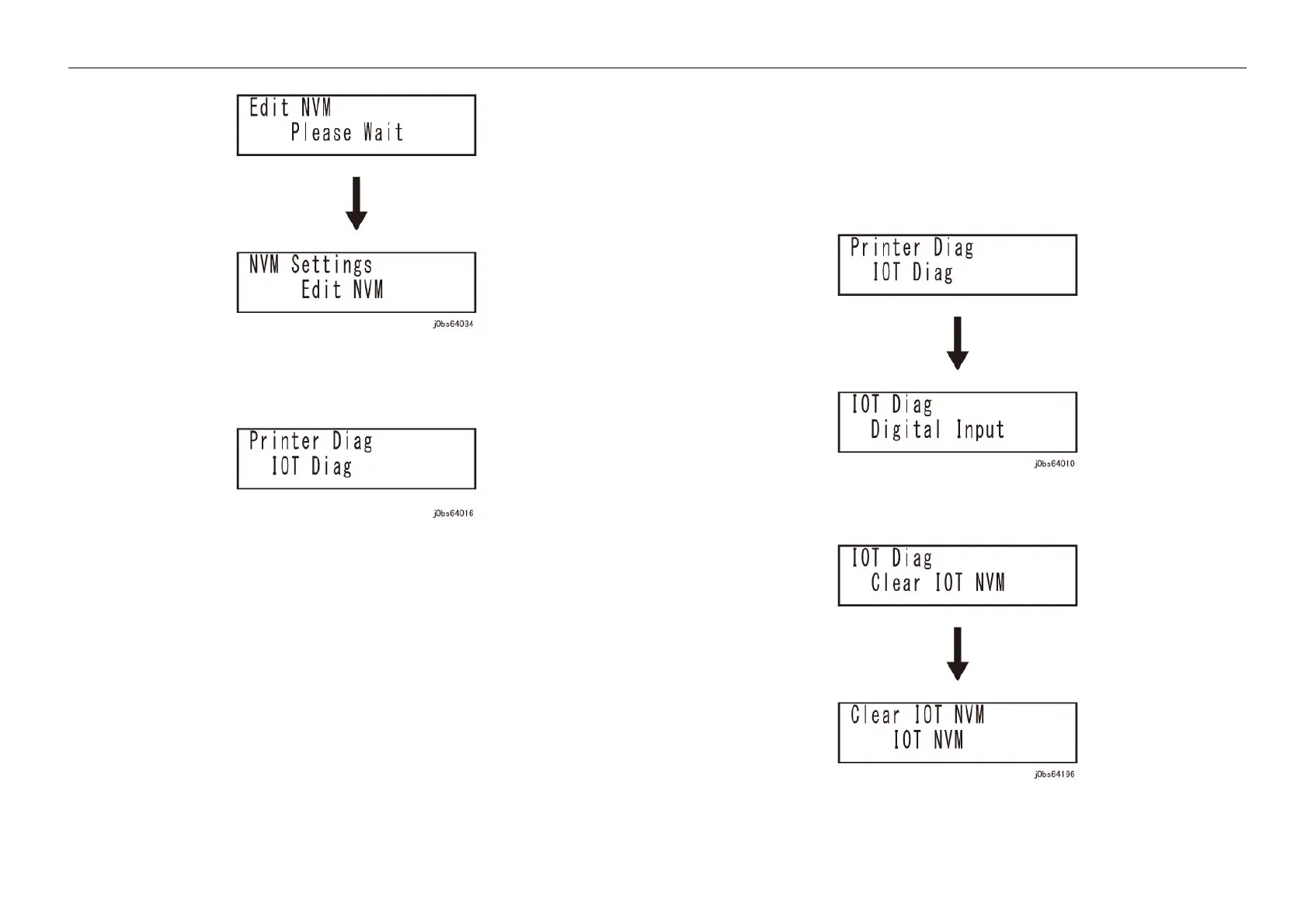

Figure 7 j0bs64034
11. Press the [<--] (Back) button to return to the [Printer Diag] screen.
Figure 8 j0bs64016
12. Exit the CE mode. (See "6.4.4 How to Exit the CE Mode".)
6.4.8.5 Clear IOT NVM
• Clear the NVM data of IOT.
Operation Procedure
1. Enter the CE Mode. (Refer to "6.4.2 How to Enter the CE Mode")
2. Make sure [Printer Diag] is selected, and then press [OK] button.
3. Select "IOT Diag" with the [Down arrow] button and press the [OK] button.
Figure 1 j0bs64010
4. Select "Clear IOT NVM" with the [Down arrow] button and press the [OK] button.
Figure 2 j0bs64196
5. [Confirmation Screen] to clear [IOT NVM] will be displayed.
To Next Page
