6.4.9.1 Print Printer Configuration Data Config Page
Version 1.1
6.4.9.1 Print Printer Configuration Data Config Page
Prints the printer configuration data (below) (printable paper size is A4).
• Optional Products Status (IOT mounting tray)
• IOT ROM Revision No (IOT ROM version)
Operation Procedure
1. Enter the CE Mode. (Refer to "6.4.2 How to Enter the CE Mode")
2. Make sure [Printer Diag] is selected, and then press [OK] button.
3. Select the "Print Info" in the [Down arrow] button, and then press [OK] button.

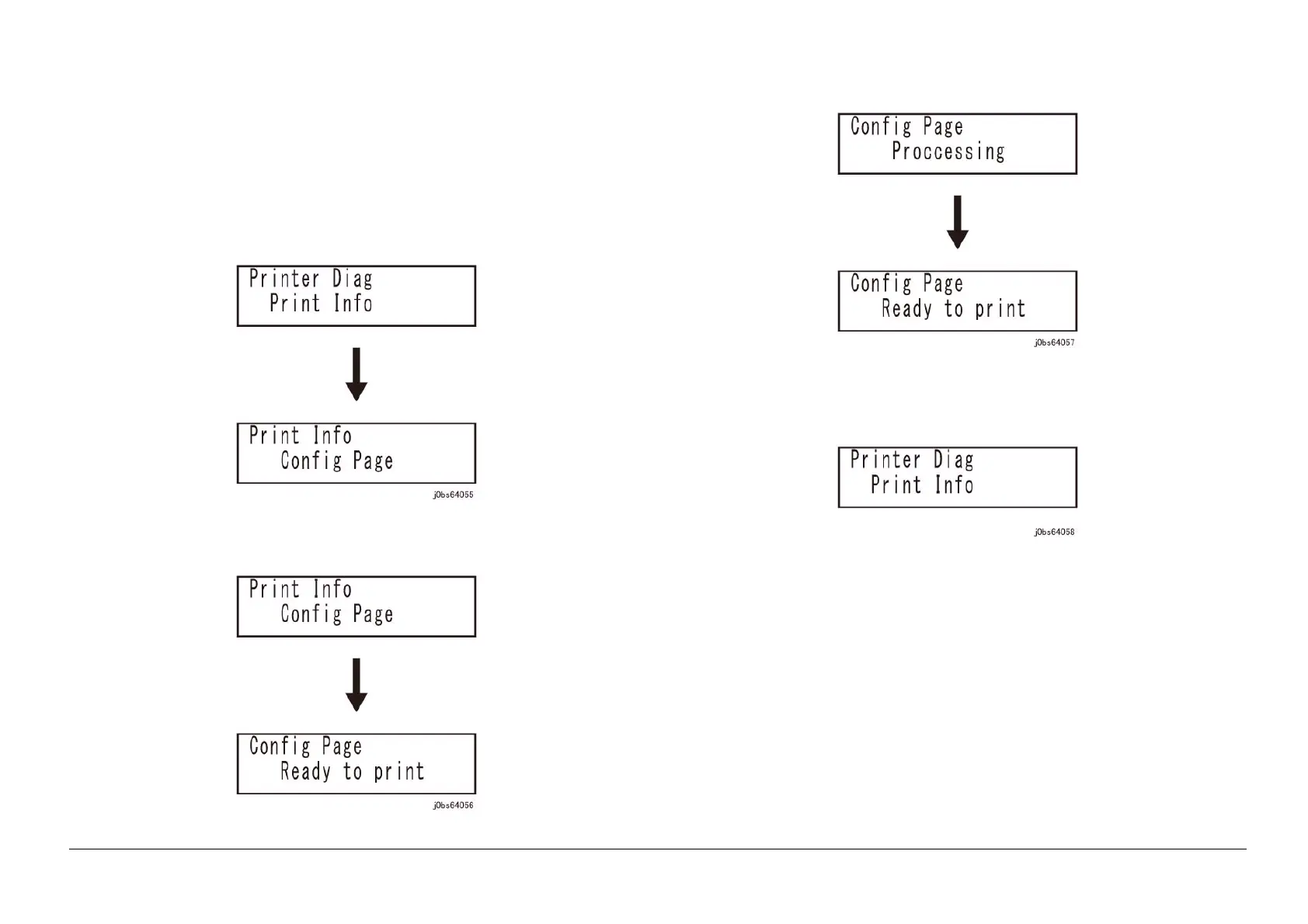

Figure 1 j0bs64055
4. Press the [OK] button.
Figure 2 j0bs64056
5. Press the [OK] button to print the printer configuration data.
• When the print has completed, it returns to the "Ready" screen.
Figure 3 j0bs64057
6. Press the [<--] (Back) button to return to the [Printer Diag] screen.
Figure 4 j0bs64058
7. Exit the CE mode. (See "6.4.4 How to Exit the CE Mode".)
