6.4.12.1 Initialization (Life) and the display of life counter
Version 1.1
6.4.12.1 Initialization (Life) and the display of life counter
Conduct life and display counter value of IIOT and life counter value initialization.
Operation Procedure
Here are example how to initialize and verify the 2nd BTR Unit life counter value.
1. Enter the CE Mode. (Refer to "6.4.2 How to Enter the CE Mode")
2. Make sure [Printer Diag] is selected, and then press [OK] button.
3. "Parameter" in the [Down arrow] button to select, and then press [OK] button.
4. "Life" in the [Down arrow] button to select, and then press [OK] button.

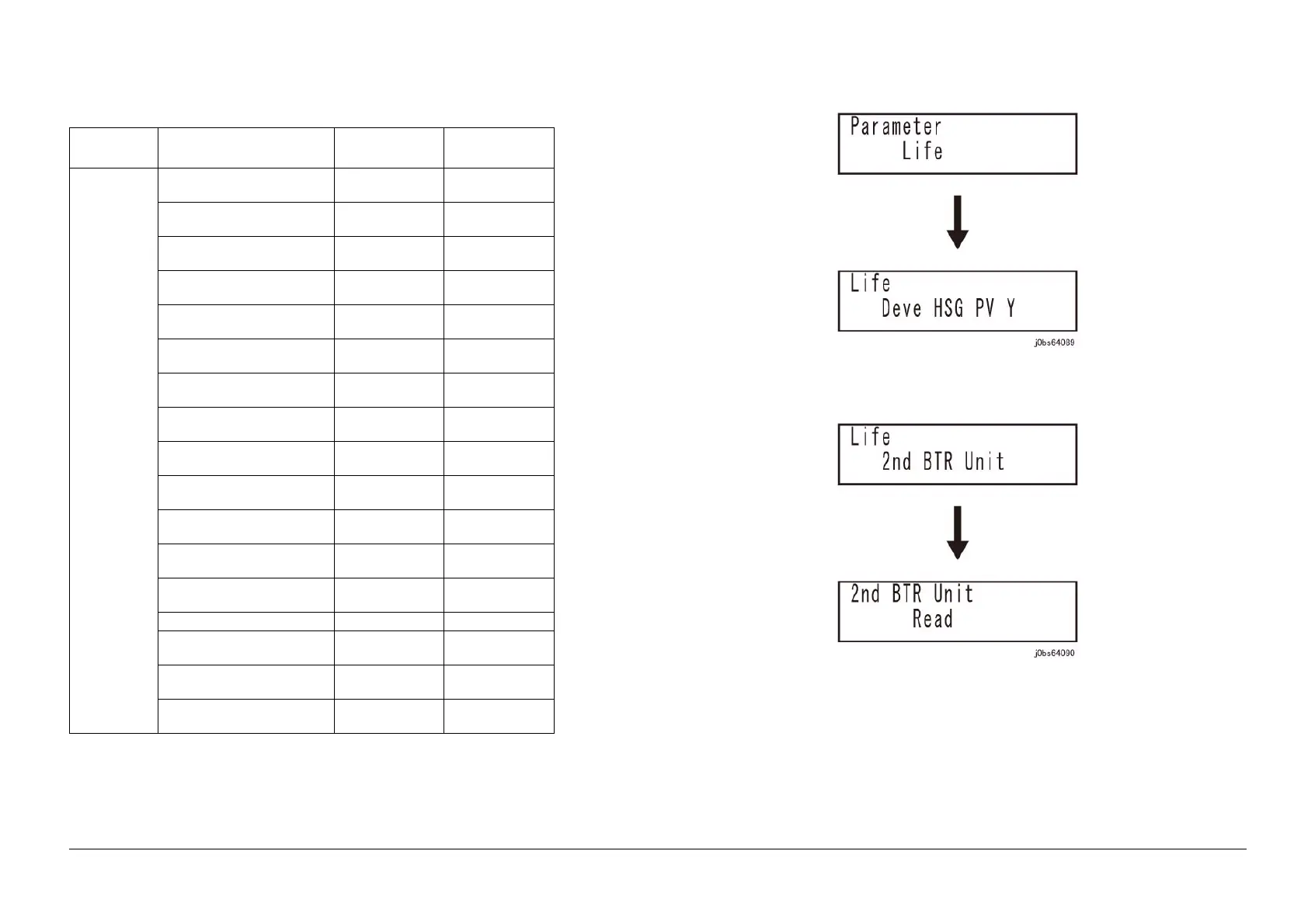

Figure 1 j0bs64089
5. Press the [<--] (Back) button to return to the [Printer Diag] screen.
Figure 2 j0bs64090
6. Press the [OK] button, it displays the value.
Table 1 Life counter
Item Threshold
Display/
initialization
Life
Deve HSG PV Y 38000 Display/initializa-
tion
Deve HSG PV M 38000 Display/initializa-
tion
Deve HSG PV C 38000 Display/initializa-
tion
Deve HSG PV K 38000 Display/initializa-
tion
Y Drum Ctrg PV 68200 Display/initializa-
tion
M Drum Ctrg PV 68200 Display/initializa-
tion
C Drum Ctrg PV 68200 Display/initializa-
tion
K Drum Ctrg PV 68200 Display/initializa-
tion
IBT Unit 120000 Display/initializa-
tion
2nd BTR Unit 120000 Display/initializa-
tion
Fusing Print Count 100000 Display/initializa-
tion
Fusing Time Count 18000000 Display/initializa-
tion
Deodorant Filter 120000 Display/initializa-
tion
EEPROM Write Cnt - Display
Tray1 F/R/N Roll 50000 Display/initializa-
tion
Tray2 F/R/N Roll 50000 Display/initializa-
tion
MSI FR Pad 50000 Display/initializa-
tion
