05/2014
6-247
DC SC2020
General
6.4.13 RTC Set
Version 1.1
6.4.13 RTC Set
Setting of RTC (Real Time Clock).
Operation Procedure
1. Enter the CE Mode. (Refer to "6.4.2 How to Enter the CE Mode")
2. Make sure [Printer Diag] is selected, and then press [OK] button.
3. "RTC Set" in the [Down arrow] button to select, and then press [OK] button.

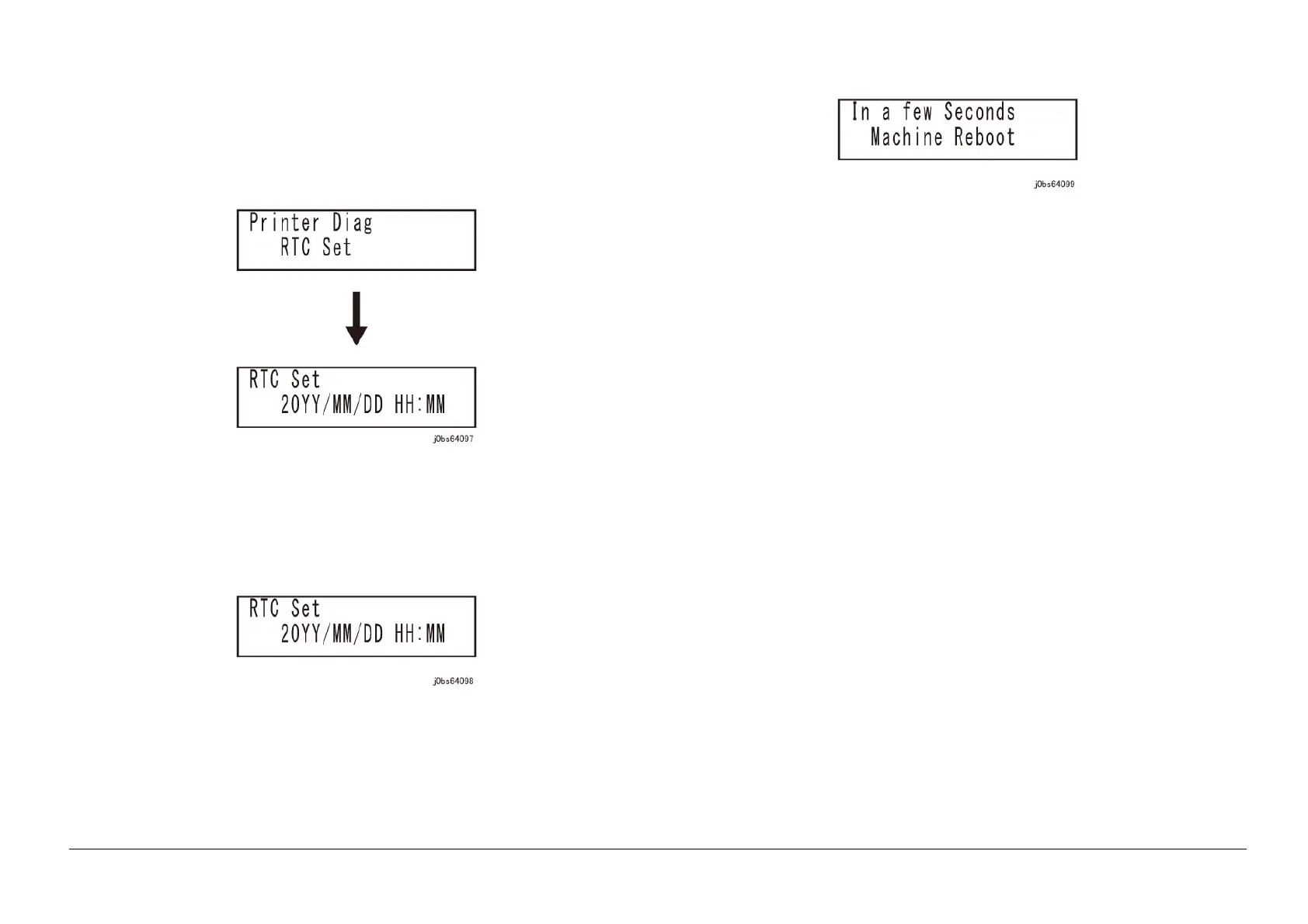

Figure 1 j0bs64097
4. Change the NVM value.
• [Move the Cursor (A) to the left or the right by pressing the [<] [>] buttons.
• Change the number of the cursor (A) by pressing the [Up arrow] button and [Down arrow] but-
ton.
Figure 2 j0bs64098
5. Press the [OK] button.
New RTC is set and press the [OK] button and printer will restart automatically.
Figure 3 j0bs64099
To Next Page
