6.4.12.3 Procon Print
Version 1.1
General
6.4.12.3 Procon Print
• Print current value of NVM used in Procon.
The actual sample that will be printed out is described in "ADJ 8.1.5 ProCon/RegCon Print".
Operation Procedure
1. Enter the CE Mode. (Refer to "6.4.2 How to Enter the CE Mode")
2. Make sure [Printer Diag] is selected, and then press [OK] button.
3. Select [Parameter] with the [Down arrow] button and press the [OK] button.
4. Select [Procon Print] with the [Down arrow] button and press the [OK] button.

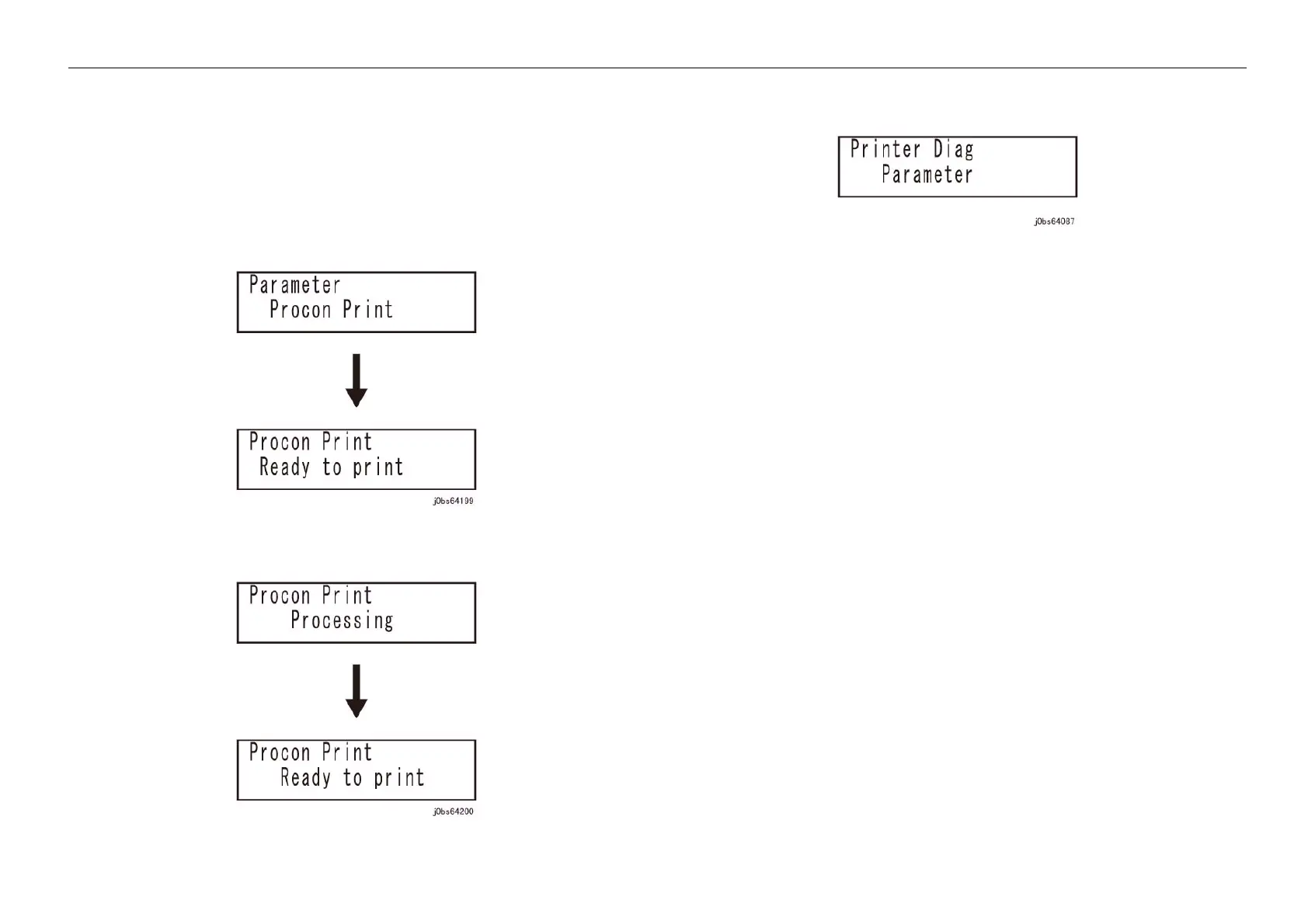

Figure 1 j0bs64199
5. Print out "Procon Print" by pressing the [OK] button.
Figure 2 j0bs64200
6. Press the [<--] (Back) button to return to the [Printer Diag] screen.
Figure 3 j0bs64087
7. Exit the CE mode. (See "6.4.4 How to Exit the CE Mode".)
