05/2014
9-12
DC SC2020
9.1.3 Duplex
Version 1.1
Installation/Removal

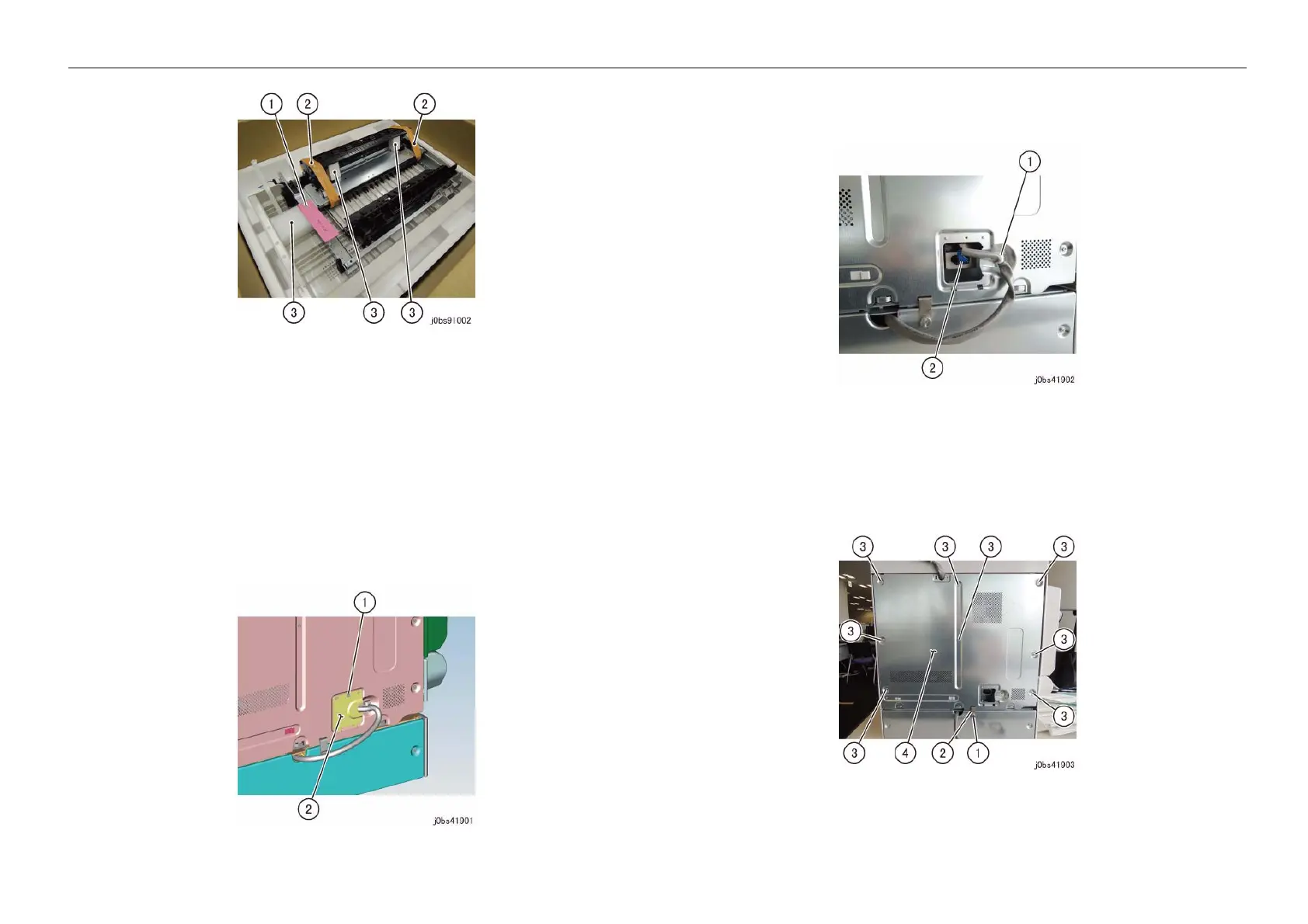

Figure 2 j0bs91002
3. Turn OFF the Power Switch and make sure that power-saving LED and screen display turn OFF.
CAUTION
When turning OFF the power switch, check that the "Data" lamp is OFF and that there is no Job in
progress.
4. Unplug the power plug.
WARNING
When maintaining the machine, turn OFF the power switch and unplug the power plug.
5. [Machines with One Tray Module]: Remove the STM Connector Cover. (Figure 3)
(1) Remove the screw.
(2) Remove the STM Connector Cover.
Figure 3 j0bs41901
6. [Machines with One Tray Module]: Disconnect the connector. (Figure 4)
(1) Remove the cable band.
(2) Disconnect the connector.
Figure 4 j0bs41902
7. Remove the Rear Cover. (Figure 5)
(1) Remove the Docking Screw.
(2) Remove the Docking Bracket.
(3) Remove the screw (x8).
(4) Remove the Rear Cover.
Figure 5 j0bs41003
8. Remove the gear. (Figure 6)
(1) Remove the E-Clip (x2).
(2) Remove the gear (x2).
To Next Page
