DC SC2020
Installation/Removal
9.1.3 Duplex
Version 1.1

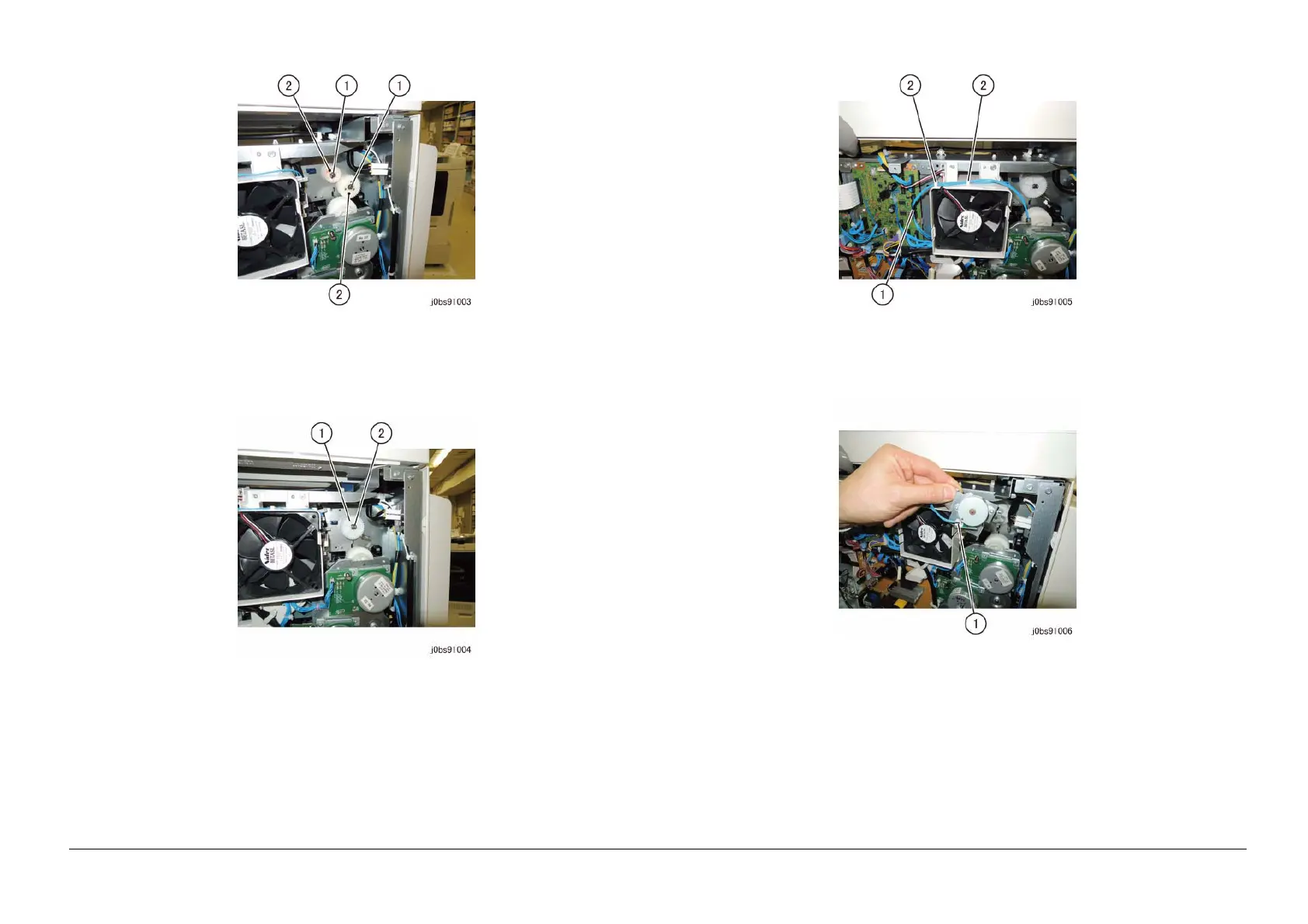

Figure 6 j0bs91003
9. Install the gear provided in the Kit. (Figure 7)
(1) Put the gear.
(2) Secure it by using the E-Clip that were removed in Step 8.
Figure 7 j0bs91004
10. Connect the wire harness in the Kit. (Figure 8)
(1) Connect the wire harness.
(2) Wire the Wire Harness in Hook of Duct (x2).
Figure 8 j0bs91005
11. Connect Wire Harness to Inverter Motor in the kit. (Figure 9)
(1) Connect Wire Harness to the Inverter Motor.
Figure 9 j0bs91006
12. Install the Inverter Motor. (Figure 10)
(1) Install the Inverter Motor.
(2) Secure it by using the screw (x2) that are provided in the Kit.
To Next Page
