05/2014
9-14
DC SC2020
9.1.3 Duplex
Version 1.1
Installation/Removal

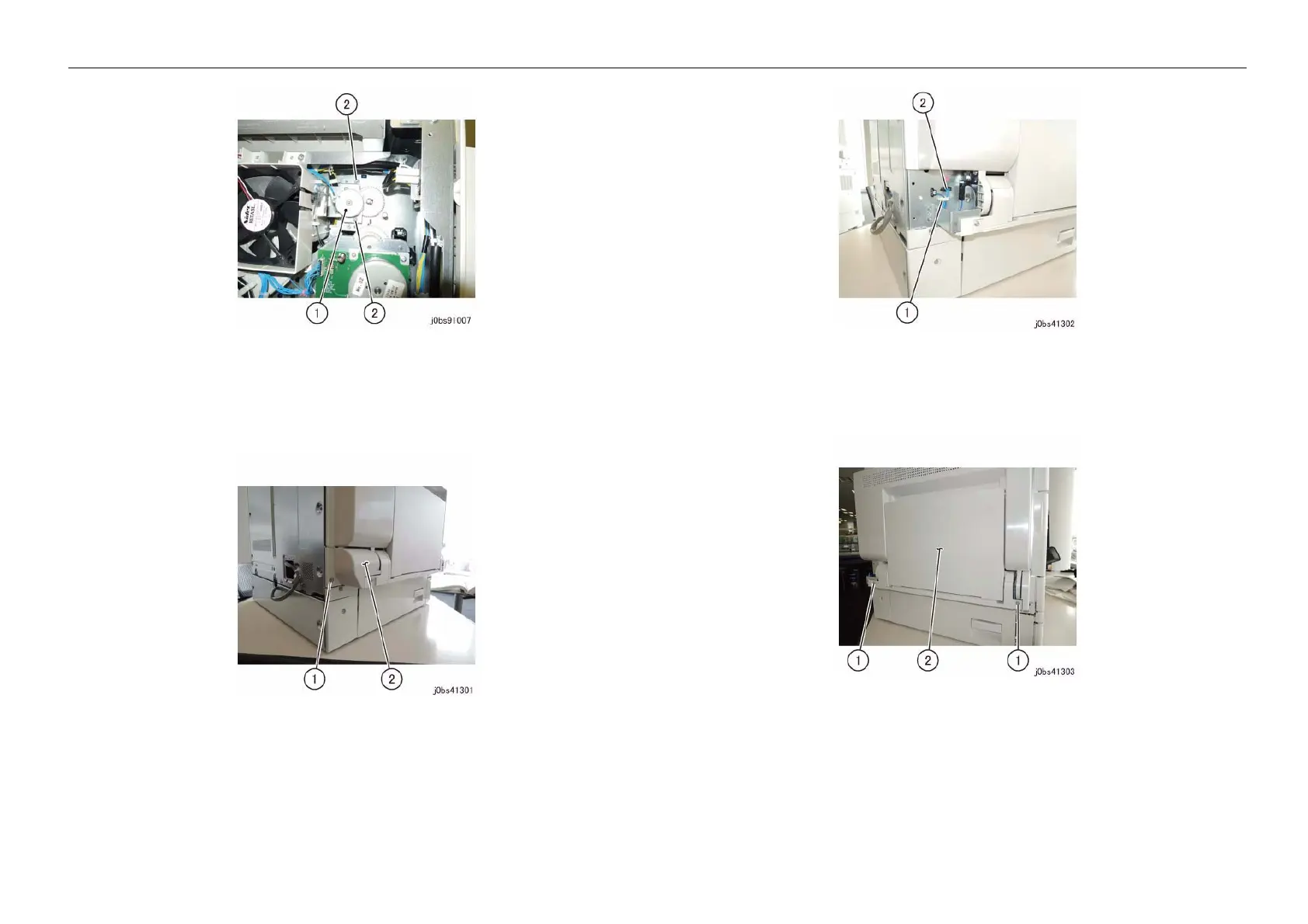

Figure 10 j0bs91007
13. Reinstall the parts that were removed in Steps 5 to 7.
14. Remove the Hinge Rear Cover. (Figure 11)
(1) Remove the screw.
(2) Remove the Hinge Rear Cover.
Figure 11 j0bs41301
15. Disconnect the connector. (Figure 12)
(1) Release the wire harness from the clamp.
(2) Disconnect the connector.
Figure 12 j0bs41302
16. Remove the MSI. (Figure 13)
(1) Remove the screw (x2).
(2) Remove the MSI.
Figure 13 j0bs41303
17. Pull out Tray 1 slightly and remove the screw that secures the Hinge Front Cover. (Figure 14)
(1) Remove the screw.
To Next Page
