05/2014
9-16
DC SC2020
9.1.3 Duplex
Version 1.1
Installation/Removal

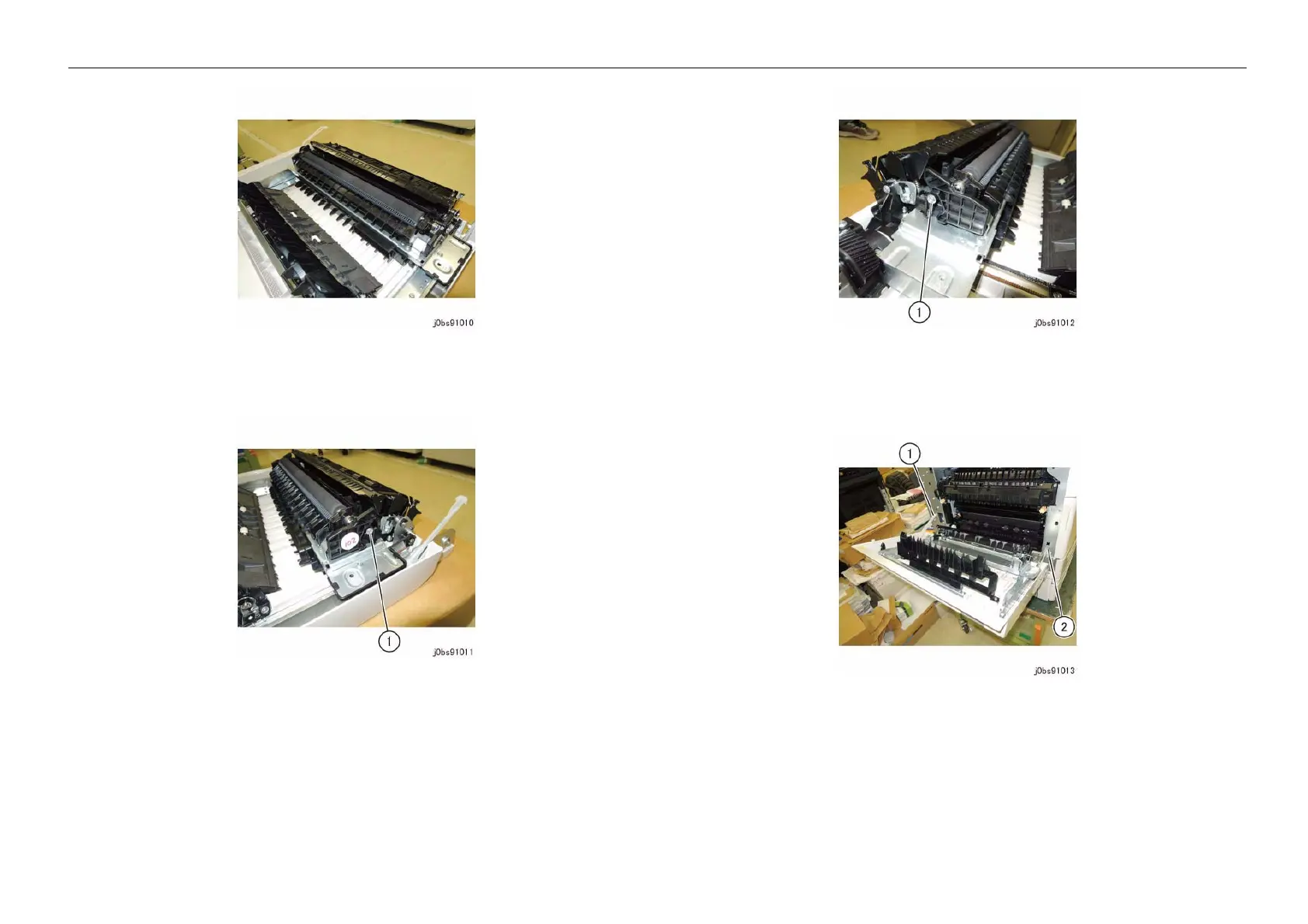

Figure 18 j0bs91010
22. Fix 2nd BTR Housing on the Front side. (Figure 19)
(1) Secure it by using Screws that were removed in Step 19.
Figure 19 j0bs91011
23. Fix 2nd BTR Housing on the Rear side. (Figure 20)
(1) Secure it by using Screws that were removed in Step 19.
Figure 20 j0bs91012
24. Release the L/H Cover Support (x2). (Figure 21)
(1) Rotate by 90 degrees and pull L/H Cover Support off the Rear side.
(2) Rotate by 90 degrees and pull L/H Cover Support off the Front side.
Figure 21 j0bs91013
25. Remove the L/H Cover. (Figure 22)
(1) Align the position of Tab of L/H Cover Boss Hole Bracket with Cutout of Boss Bracket in the
Front side and move L/H Cover in the Front side.
To Next Page
